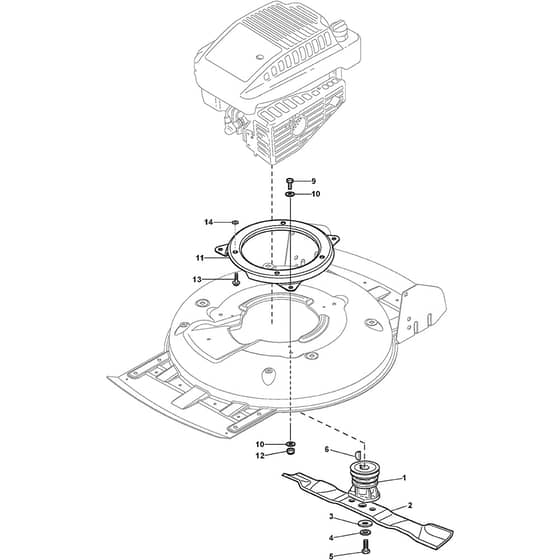

MULTICLIP 50 SX - 2019-2021 - 291502048/ST1 - Stiga Rotary Mower Blade Diagram

Name: MULTICLIP 50 SX - 2019-2021 - 291502048/ST1 - Stiga Rotary Mower Blade Diagram
SKU: multiclip_50_sx_291502048_st1_blade-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 SX - 2019-2021 - 291502048/ST1 - Stiga Rotary Mower Blade Diagram

Description

Stiga MULTICLIP 50 SX Parts Diagram

Product Name - MULTICLIP 50 SX

Model Year - 2019-2021

Model Type - MCS 504 TR

Art.N - 291502048/ST1

Engine Model - ST 170 OHV Autochoke Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-2-2019	£9.29 £7.74
2	MO181004146/0 In stock	Blade Standard	£14.95 £12.46
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
11	MO322207219/1 Available to backorder	Flange	£25.76 £21.47
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
14	MO112521360/0 In stock	Washer M10 10.5 X 20 X 2	£1.55 £1.29
