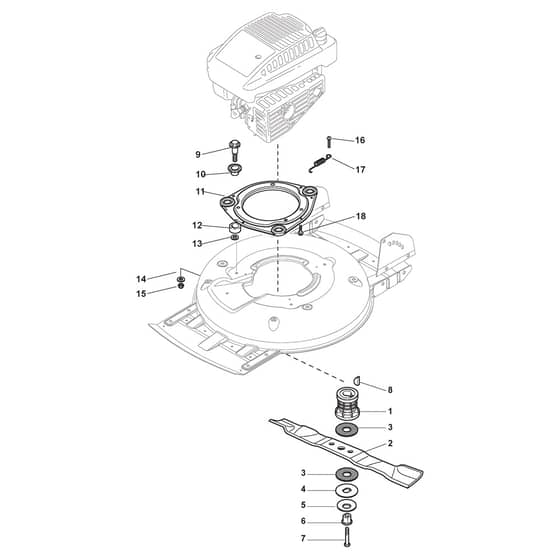

MULTICLIP 50 S RENTAL - 2009-2010 - 291502141/ST9 - Stiga Rotary Mower Blade Diagram

Name: MULTICLIP 50 S RENTAL - 2009-2010 - 291502141/ST9 - Stiga Rotary Mower Blade Diagram
SKU: multiclip_50_s_rental_291502141_st9_blade-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 S RENTAL - 2009-2010 - 291502141/ST9 - Stiga Rotary Mower Blade Diagram

Description

Stiga MULTICLIP 50 S RENTAL Parts Diagram

Product Name - MULTICLIP 50 S RENTAL

Model Year - 2009-2010

Model Type - MCS 504 TR

Art.N - 291502141/ST9

Engine Model - SA 55 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465611/0 Available to backorder	Hub With Pulley Ø 22.2	£19.19 £15.99
2	MO181004146/0 In stock	Blade Standard	£14.95 £12.46
3	MO322672110/1 In stock	Washer	£1.82 £1.52
4	MO322672105/0 Available to backorder	Washer	£3.56 £2.97
5	MO112508120/0 Available to backorder	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
8	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO122524329/0 Available to backorder	Pin	£12.25 £10.21
11	MO381207221/1 Available to backorder	Flange. Black	£30.97 £25.81
12	MO322250012/0 Available to backorder	No Vibrations Rubber	£8.59 £7.16
13	MO322672201/0 Available to backorder	Washer To 31-8-2009	£6.04 £5.03
14	MO122671651/0 Available to backorder	Washer To 31-8-2009	£1.97 £1.64
14	MO112521350/0 Available to backorder	Washer From 01-9-2009	£1.55 £1.29
15	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
18	MO112735108/1 Available to backorder	Telf-Form Screw 3.8" X 1¼" Unc	£2.12 £1.77
