MULTICLIP 50 S H - 2009-2011 - 291502031/ST9 - Stiga Rotary Mower Handle Upper Part Diagram

Name: MULTICLIP 50 S H - 2009-2011 - 291502031/ST9 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: multiclip_50_s_h_291502031_st9_handle_upper_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 S H - 2009-2011 - 291502031/ST9 - Stiga Rotary Mower Handle Upper Part Diagram

Description

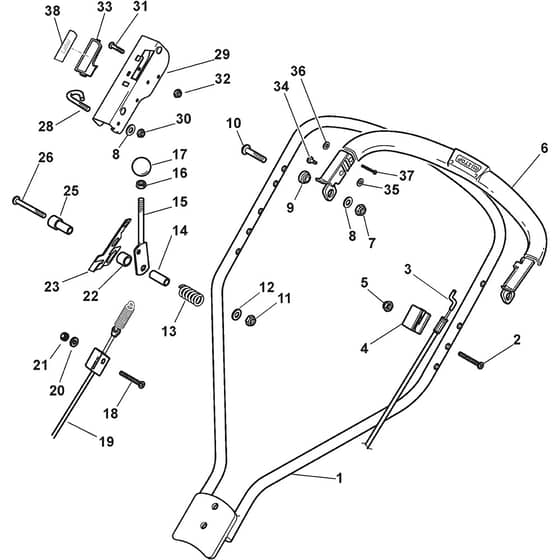

Stiga MULTICLIP 50 S H Parts Diagram

Product Name - MULTICLIP 50 S H

Model Year - 2009-2011

Model Type - MCS 504 TR

Art.N - 291502031/ST9

Engine Model - GCV 135 OHC

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006367/2 Available to backorder	Handle. Upper Part Black Black From 01-9-2013	£128.35 £106.96
3	MO181000733/0 Available to backorder	Cable. Thread Engine Brake HON Engine	£21.35 £17.79
4	MO322551639/0 In stock	Cable Holder	£14.44 £12.03
6	MO381003318/1 Available to backorder	Lever. Engine Brake	£40.82 £34.02
9	MO122671660/1 Available to backorder	Washer	£4.08 £3.40
10	MO112727784/0 Available to backorder	Screw	£1.40 £1.17
13	MO122450446/0 Available to backorder	Spring	£1.55 £1.29
14	MO122170840/0 Available to backorder	Spacer	£6.20 £5.17
15	MO381003313/0 Available to backorder	Driving Lever	£15.84 £13.20
16	MO112293200/0 In stock	Nut	£1.55 £1.29
17	MO322399812/0 Available to backorder	Knob	£3.78 £3.15
18	MO112727791/0 Available to backorder	Screw	£1.55 £1.29
19	MO381030095/0 Available to backorder	Cable Rear Drive From 01-9-2012	£22.93 £19.11
19	MO381000745/1 Available to backorder	Cable Rear Drive From 01-9-2008 To 31-8-2012	£22.81 £19.01
20	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
22	MO122170843/0 Available to backorder	Spacer	£1.82 £1.52
23	MO322551653/0 Available to backorder	Plate	£4.08 £3.40
25	MO122170842/0 Available to backorder	Spacer	£2.68 £2.23
26	MO112727786/0 Available to backorder	Screw	£1.97 £1.64
28	MO122430314/0 Available to backorder	Starting Rope Guide Spring	£5.92 £4.93
29	MO381004405/0 Available to backorder	Dashboard	£20.96 £17.47
31	MO112727792/0 Available to backorder	Screw	£1.55 £1.29
32	MO112154510/0 In stock	Nut	£1.55 £1.29
33	MO322500050/0 Available to backorder	Shoe	£1.69 £1.41
34	MO122524342/0 Available to backorder	Pin	£1.69 £1.41
35	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
36	MO112154330/0 In stock	Nut	£1.55 £1.29
37	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
