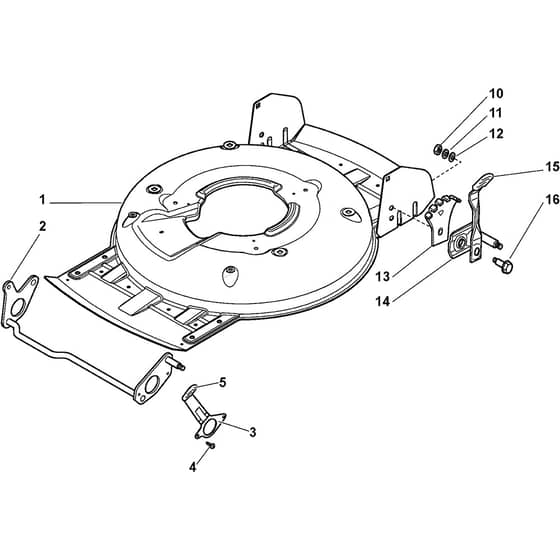

MULTICLIP 50 S BLUE - 2012-2013 - 291502144/S12 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: MULTICLIP 50 S BLUE - 2012-2013 - 291502144/S12 - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: multiclip_50_s_blue_291502144_s12_deck_and_height_adjusting-grou
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 S BLUE - 2012-2013 - 291502144/S12 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga MULTICLIP 50 S BLUE Parts Diagram

Product Name - MULTICLIP 50 S BLUE

Model Year - 2012-2013

Model Type - MCS 504 TR

Art.N - 291502144/S12

Engine Model - Stiga RS 100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004734/1 Available to backorder	Grey Deck From 01-9-2016	£204.12 £170.10
2	MO381302863/0 Available to backorder	Axle. Front Wheels From 01-9-2012	£46.46 £38.72
2	MO381002849/0 Available to backorder	Front Wheel Axle To 31-8-2012	£39.31 £32.76
3	MO381003412/0 Available to backorder	Lever. Height Adjustment To 31-8-2014	£13.72 £11.43
3	MO381003276/0 Available to backorder	Lever. Height Adjustment To 31-8-2012	£20.57 £17.14
3	MO322321546/0 Available to backorder	Lever From 01-9-2014	£9.64 £8.03
4	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
5	MO122394501/0 Available to backorder	Knob From 01-9-2014	£1.55 £1.29
10	MO112293200/0 In stock	Nut	£1.55 £1.29
11	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
12	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
13	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.26 £1.88
14	MO381005084/0 Available to backorder	Wheel Support To 31-8-2012	£5.47 £4.56
14	MO381005175/1 Available to backorder	Support. Wheel From 01-6-2018	£8.17 £6.81
15	MO481003286/0 Available to backorder	Lever. Height Adjustment	£4.78 £3.98
16	MO122519811/0 Available to backorder	Wheel Bolt	£1.55 £1.29
