MULTICLIP 50 S B - 2011 - 291502024/S11 - Stiga Rotary Mower Blade Diagram

Description

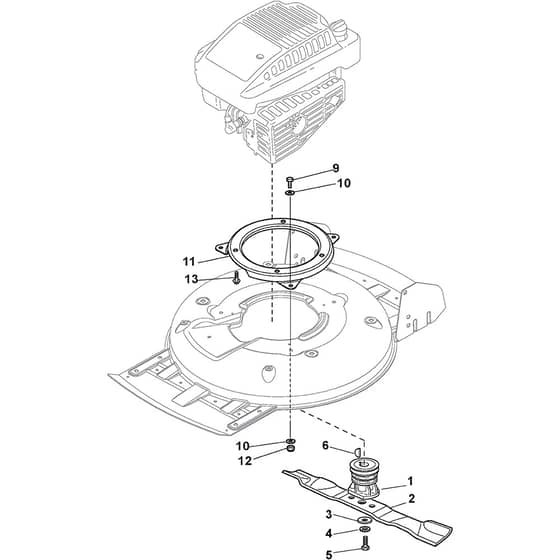

Stiga MULTICLIP 50 S B Parts Diagram

Product Name - MULTICLIP 50 S B

Model Year - 2011

Model Type - MCS 504 TR

Art.N - 291502024/S11

Engine Model - 550 series XMH

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2010	£9.30 £7.75
2	MO181004146/0 In stock	Blade Standard	£13.44 £11.20
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO322207219/1 Available to backorder	Flange	£25.76 £21.47
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO112735108/1 In stock	Screw From 01-9-2014	£2.11 £1.76
13	MO112735109/2 Available to backorder	Telf-Form Screw Te Fl 3.8" X 1"	£2.59 £2.16
