MULTICLIP 50 S - 2014-2015 - 291502048/S14 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

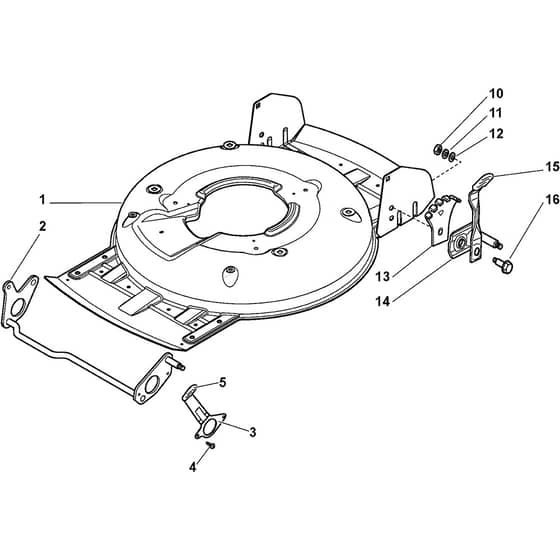

Stiga MULTICLIP 50 S Parts Diagram

Product Name - MULTICLIP 50 S

Model Year - 2014-2015

Model Type - MCS 504

Art.N - 291502048/S14

Engine Model - ST 45 OHV

	Part No.	Details
1	MO381004734/1 Available to backorder	Grey Deck From 01-9-2016	£204.12 £170.10
2	MO381002849/0 Available to backorder	Front Wheel Axle To 31-8-2012	£39.31 £32.76
2	MO381302863/0 Available to backorder	Axle. Front Wheels From 01-9-2012	£46.48 £38.73
3	MO322321546/0 Available to backorder	Lever From 01-9-2014	£9.65 £8.04
3	MO381003412/0 Available to backorder	Lever. Height Adjustment To 31-8-2014	£13.72 £11.43
3	MO381003276/0 Available to backorder	Lever. Height Adjustment To 31-8-2012	£13.72 £11.43
4	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
5	MO122394501/0 Available to backorder	Knob From 01-9-2014	£1.63 £1.36
10	MO112293200/0 In stock	Nut	£1.55 £1.29
11	MO112583500/0 In stock	Grower	£1.55 £1.29
12	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
13	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.24 £1.87
14	MO381005084/0 Available to backorder	Wheel Support To 31-8-2012	£8.18 £6.82
14	MO381005175/1 Available to backorder	Support. Wheel From 01-6-2018	£8.18 £6.82
15	MO481003286/0 Available to backorder	Lever. Height Adjustment	£4.78 £3.98
16	MO122519811/0 Available to backorder	Wheel Bolt	£1.55 £1.29
