MULTICLIP 50 RENTAL - 2008-2010 - 11-5234-53 - Stiga Rotary Mower Blade Diagram

Description

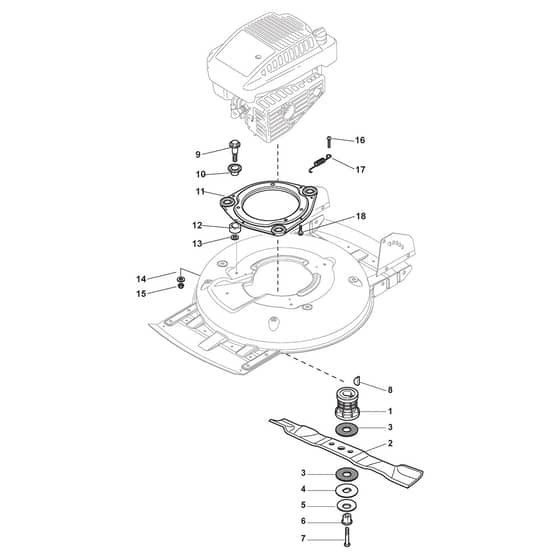

Stiga MULTICLIP 50 RENTAL Parts Diagram

Product Name - MULTICLIP 50 RENTAL

Model Year - 2008-2010

Model Type - MCS 504

Art.N - 11-5234-53

Engine Model -

	Part No.	Details
1	MO122465611/0 Available to backorder	Hub With Pulley Ø 22.2	£19.18 £15.98
2	MO181004146/0 In stock	Blade Standard	£13.44 £11.20
3	MO322672110/1 In stock	Washer	£1.84 £1.53
4	MO322672105/0 In stock	Washer	£3.55 £2.96
5	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
8	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO122524329/0 Available to backorder	Pin	£12.26 £10.22
11	MO381207221/1 Available to backorder	Flange. Black	£30.98 £25.82
12	MO322250012/0 In stock	No Vibrations Rubber	£8.59 £7.16
13	MO322672201/0 In stock	Washer To 31-8-2009	£6.05 £5.04
14	MO122671651/0 In stock	Washer To 31-8-2009	£1.97 £1.64
14	MO112521350/0 In stock	Washer From 01-9-2009	£1.55 £1.29
15	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
18	MO112735108/1 In stock	Telf-Form Screw 3.8" X 1¼" Unc	£2.11 £1.76
