MULTICLIP 50 H - 2014 - 291501038/S14 - Stiga Rotary Mower Blade Diagram

Name: MULTICLIP 50 H - 2014 - 291501038/S14 - Stiga Rotary Mower Blade Diagram
SKU: multiclip_50_h_291501038_s14_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. multiclip_50_h_291501038_s14_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 H - 2014 - 291501038/S14 - Stiga Rotary Mower Blade Diagram

Description

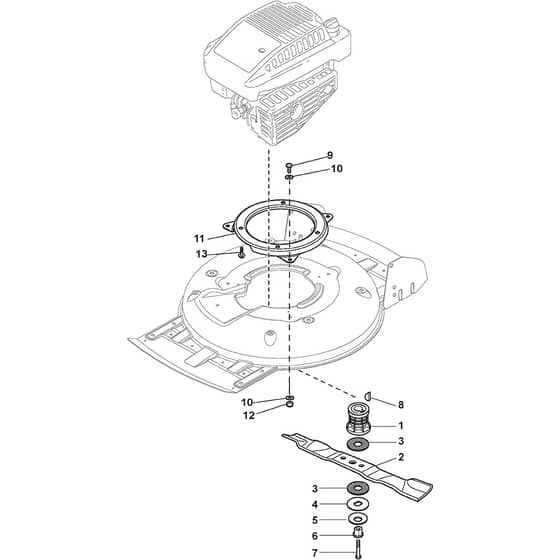

Stiga MULTICLIP 50 H Parts Diagram

Product Name - MULTICLIP 50 H

Model Year - 2014

Model Type - MCS 504

Art.N - 291501038/S14

Engine Model - GCV 140 OHC Autochoke

	Part No.	Details
1	MO122465612/1 Available to backorder	Hub With Pulley. Crankshaft Ø 25	£14.08 £11.73
2	MO181004146/0 In stock	Blade Standard	£13.44 £11.20
3	MO322672110/1 In stock	Washer	£1.84 £1.53
4	MO322672105/0 In stock	Washer	£3.55 £2.96
5	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
8	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
9	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO322207219/1 Available to backorder	Flange	£25.76 £21.47
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO112735108/1 In stock	Telf-Form Screw 3.8" X 1¼" Unc	£2.11 £1.76
