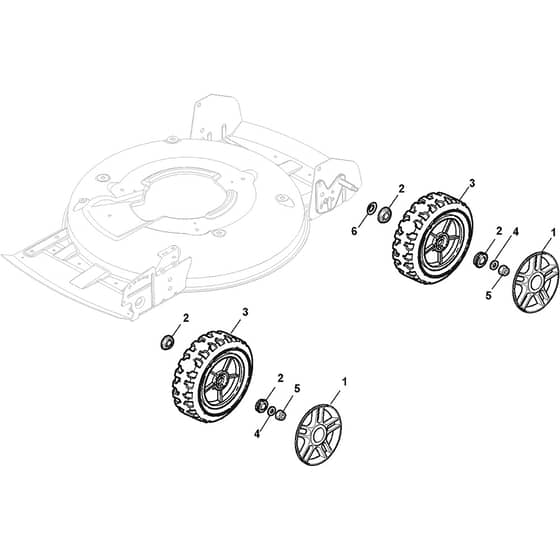

MULTICLIP 50 B - 2011 - 291501024/S11 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: MULTICLIP 50 B - 2011 - 291501024/S11 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: multiclip_50_b_291501024_s11_wheels_and_hub_caps-group
Price: 1.16 GBP
Availability: InStock

Part No. multiclip_50_b_291501024_s11_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 B - 2011 - 291501024/S11 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga MULTICLIP 50 B Parts Diagram

Product Name - MULTICLIP 50 B

Model Year - 2011

Model Type - MCS 504

Art.N - 291501024/S11

Engine Model - Briggs & Stratton 550 series XMH

	Part No.	Details
1	MO322110492/0 Available to backorder	Hub Cap Grey	£2.29 £1.91
1	MO322110563/0 Available to backorder	Hub Cap Yellow Yellow	£2.04 £1.70
2	MO122122206/0 In stock	Bearing To 31-8-2012	£1.84 £1.53
2	MO119216035/0 In stock	Bearing From 01-9-2012	£3.52 £2.93
3	MO381007360/0 Available to backorder	Wheel To 31-8-2012	£16.61 £13.84
3	MO381007490/0 Available to backorder	Wheel Ø 210 From 01-9-2012	£25.00 £20.83
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112530150/0 In stock	Spring Washer To 31-8-2012	£1.39 £1.16
