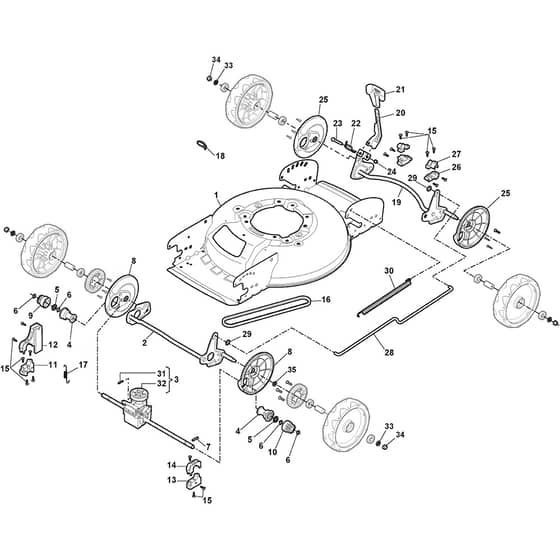

MULTICLIP 47 SQ - 2019 - 298472848/ST1P - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: MULTICLIP 47 SQ - 2019 - 298472848/ST1P - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: multiclip_47_sq_298472848_st1p_deck_and_height_adjusting-group
Price: 1.16 GBP
Availability: InStock

Part No. multiclip_47_sq_298472848_st1p_deck_and_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 47 SQ - 2019 - 298472848/ST1P - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga MULTICLIP 47 SQ Parts Diagram

Product Name - MULTICLIP 47 SQ

Model Year - 2019

Model Type - MCS 474 TRQ

Art.N - 298472848/ST1P

Engine Model - ST 140 OHV Autochoke

	Part No.	Details
2	MO381302877/0 Available to backorder	Front Wheel Axle	£27.89 £23.24
3	MO181003126/0 Available to backorder	Gear Box Assy	£116.83 £97.36
4	MO322042066/0 In stock	Bushing	£1.84 £1.53
5	MO112521371/0 Available to backorder	Washer	£1.63 £1.36
6	MO112608600/0 In stock	Seeger	£1.55 £1.29
7	MO122753000/0 In stock	Pin	£1.55 £1.29
9	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
10	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
11	MO322785476/0 Available to backorder	Support	£3.25 £2.71
12	MO322785477/1 Available to backorder	Shaft Bush Support	£4.93 £4.11
13	MO322785478/0 Available to backorder	Support	£3.25 £2.71
14	MO322785479/0 Available to backorder	Support	£3.25 £2.71
15	MO112728697/0 In stock	Screw	£1.55 £1.29
16	MO135063801/0 Available to backorder	Trapezoidal Belt	£9.04 £7.53
17	MO122450437/0 Available to backorder	Spring	£3.10 £2.58
18	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
19	MO381302879/0 Available to backorder	Rear Wheel Axle	£26.18 £21.82
20	MO322322857/0 Available to backorder	Lever. Height Adjustment	£5.92 £4.93
21	MO322394527/0 Available to backorder	Knob	£4.78 £3.98
22	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
23	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO322600204/0 Available to backorder	Internal Wheel Protectection	£3.25 £2.71
26	MO322785474/0 Available to backorder	Support	£1.55 £1.29
27	MO322785475/0 Available to backorder	Sector. Height Adjustment	£1.55 £1.29
28	MO122033332/0 Available to backorder	Adjustment Rod	£11.12 £9.27
29	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
30	MO122446184/0 Available to backorder	Spring	£5.22 £4.35
31	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
32	MO122601919/0 Available to backorder	Pulley	£14.93 £12.44
33	MO112521350/0 In stock	Washer	£1.55 £1.29
34	MO112155015/0 Available to backorder	Nut	£1.70 £1.42
35	MO122671661/0 Available to backorder	Washer	£1.39 £1.16
