MULTICLIP 47 S BLUE - 2015-2018 - 298472048/S15 - Stiga Rotary Mower Handle Upper Part Diagram

Name: MULTICLIP 47 S BLUE - 2015-2018 - 298472048/S15 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: multiclip_47_s_blue_298472048_s15_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Part No. multiclip_47_s_blue_298472048_s15_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 47 S BLUE - 2015-2018 - 298472048/S15 - Stiga Rotary Mower Handle Upper Part Diagram

Description

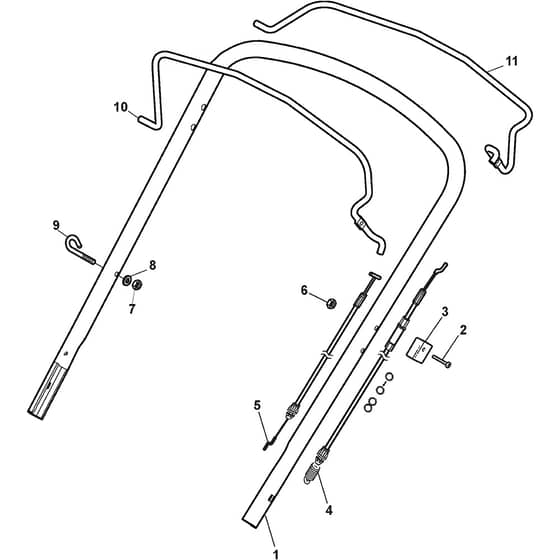

Stiga MULTICLIP 47 S BLUE Parts Diagram

Product Name - MULTICLIP 47 S BLUE

Model Year - 2015-2018

Model Type - MCS 474 TR

Art.N - 298472048/S15

Engine Model - RS 100 OHV

	Part No.	Details
1	MO381007555/0 Available to backorder	Handle. Upper Part	£19.86 £16.55
2	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
3	MO322551685/0 In stock	Cable Holder Ø22	£7.52 £6.27
4	MO381030131/0 Available to backorder	Drive Cable From 01-9-2017	£20.96 £17.47
4	MO381030103/1 Available to backorder	Cable Rear Drive From 01-9-2015 To 31-8-2017	£24.22 £20.18
5	MO181030084/0 Available to backorder	Cable. Thread Engine Brake	£12.74 £10.62
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
9	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
10	MO181003369/0 Available to backorder	Lever. Engine Brake Black	£15.62 £13.02
11	MO181003371/0 Available to backorder	Clutch Drive Lever	£15.34 £12.78
