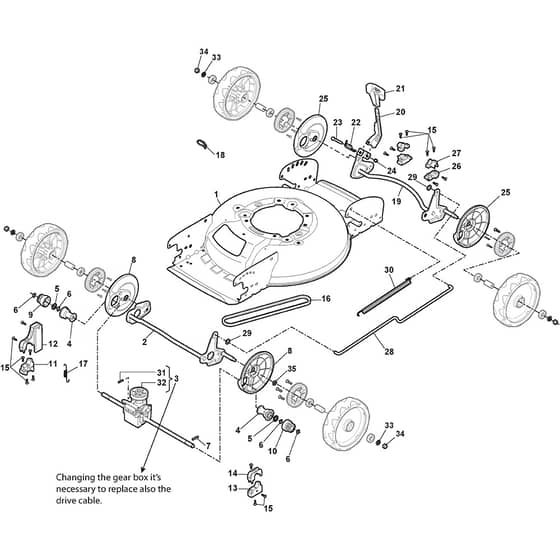

MULTICLIP 47 S AE - 2017-2018 - 298472008/S17 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga MULTICLIP 47 S AE Parts Diagram

Product Name - MULTICLIP 47 S AE

Model Year - 2017-2018

Model Type - MCS 470 TR LI 80

Art.N - 298472008/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO381302877/0 Available to backorder	Front Wheel Axle	£27.88 £23.23

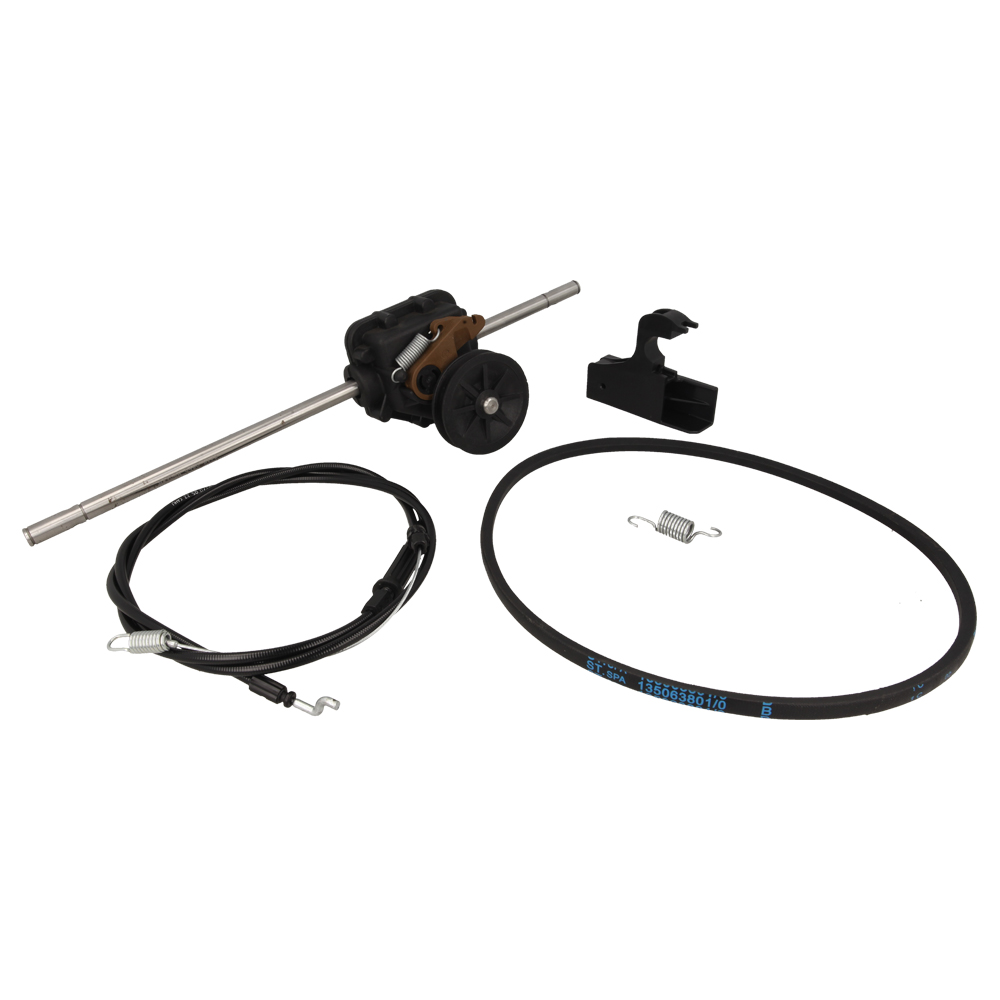

3	MOREPLA0000080 Available to backorder	Gear Box Transmission with plastic gear	£135.40 £112.83
4	MO322042066/0 Available to backorder	Bushing	£1.82 £1.52
5	MO112521371/0 Available to backorder	Washer	£1.55 £1.29
6	MO112608600/0 In stock	Seeger	£1.55 £1.29
7	MO122753000/0 In stock	Pin	£1.55 £1.29
9	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
10	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
11	MO322785476/0 Available to backorder	Support	£3.24 £2.70
12	MO322785477/1 Available to backorder	Support	£4.93 £4.11
13	MO322785478/0 Available to backorder	Support	£3.24 £2.70
14	MO322785479/0 Available to backorder	Support	£3.24 £2.70
15	MO112728697/0 In stock	Screw	£1.55 £1.29
16	MO135063800/0 In stock	Trapezoidal Belt Belt for transmission with bronze gear	£9.17 £7.64
16	MO135063802/0 Available to backorder	Belt Belt for transmission with plastic gear	£9.17 £7.64
17	MO122450439/0 Available to backorder	Spring	£3.38 £2.82
18	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
19	MO381302879/0 Available to backorder	Rear Wheel Axle	£26.18 £21.82
20	MO322322857/0 Available to backorder	Lever. Height Adjustment	£5.92 £4.93
21	MO322394527/0 Available to backorder	Knob	£4.97 £4.14
22	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
23	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO322600204/0 Available to backorder	Internal Wheel Protectection	£3.24 £2.70
26	MO322785474/0 Available to backorder	Support	£1.55 £1.29
27	MO322785475/0 Available to backorder	Sector. Height Adjustment	£1.55 £1.29
28	MO122033332/0 Available to backorder	Adjustment Rod	£11.12 £9.27
29	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
30	MO122446184/0 Available to backorder	Spring	£5.21 £4.34
31	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29

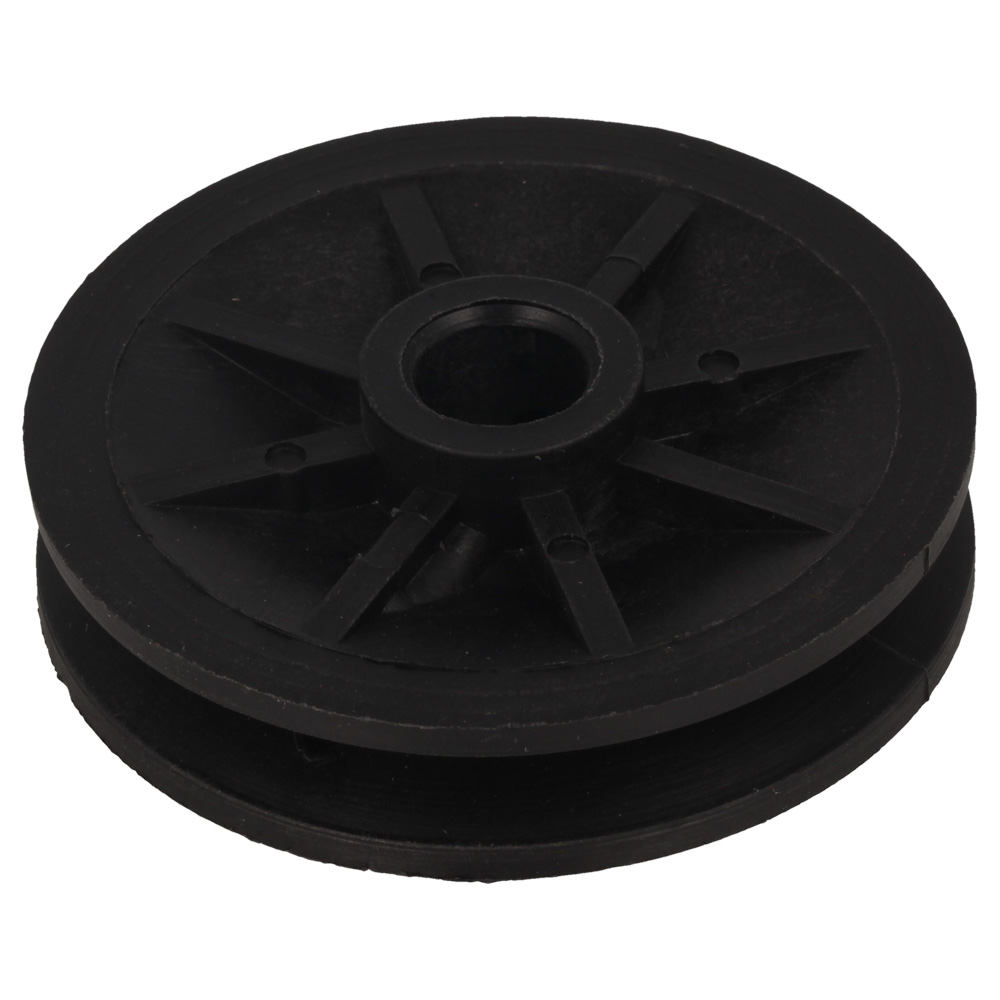

32	MO122601919/0 Available to backorder	Pulley	£14.92 £12.43
33	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
34	MO112155015/0 Available to backorder	Nut From 01-9-2015	£1.69 £1.41
34	MO112155000/0 In stock	Nut To 31-8-2015	£1.55 £1.29
35	MO122671661/0 Available to backorder	Washer Zinced 12.4 X 20 X 1	£1.40 £1.17
