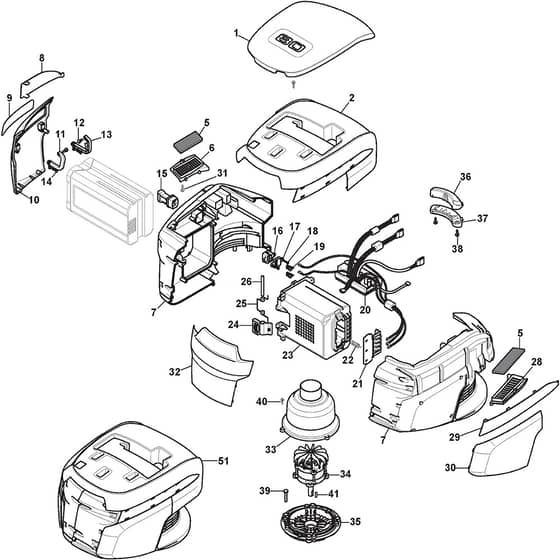

MULTICLIP 47 AE - 2018-2019 - 298471008/ST1 - Stiga Rotary Mower Battery Motor Assy Diagram

Name: MULTICLIP 47 AE - 2018-2019 - 298471008/ST1 - Stiga Rotary Mower Battery Motor Assy Diagram
SKU: multiclip_47_ae_298471008_st1_battery_motor_assy-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 47 AE - 2018-2019 - 298471008/ST1 - Stiga Rotary Mower Battery Motor Assy Diagram

Description

Stiga MULTICLIP 47 AE Parts Diagram

Product Name - MULTICLIP 47 AE

Model Year - 2018-2019

Model Type - MCS 470 A LI 80

Art.N - 298471008/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322109969/0A Available to backorder	Upper Cover	£35.20 £29.33
2	MO322109952/1 Available to backorder	Cover. Yellow	£35.20 £29.33
5	MO118401009/0 Available to backorder	Air Filter	£4.93 £4.11
7	MO118810739/0 Available to backorder	Housing Assy. Grey	£81.66 £68.05
8	MO322109958/0 Available to backorder	Right Side Cover	£3.10 £2.58
9	MO322109961/0 Available to backorder	Cover	£5.48 £4.57
10	MO322109953/0 Available to backorder	Battery Cover. Yellow	£13.37 £11.14
11	MO322109971/0 Available to backorder	Lever	£4.66 £3.88
12	MO322524357/0 Available to backorder	Fulcrum Pin	£1.55 £1.29
13	MO322109972/0 Available to backorder	Lever	£4.66 £3.88
17	MO322109975/0 Available to backorder	Cover	£4.50 £3.75
20	MO118810748/0 Available to backorder	Electronic Card Assy PCB with cables	£204.12 £170.10
21	MO118810277/0 Available to backorder	Battery Clamp	£6.01 £5.01
22	MO118810276/0 Available to backorder	Spring	£1.69 £1.41
23	MO322109970/0 Available to backorder	Batterybox	£16.12 £13.43
24	MO118810273/0 Available to backorder	Lever	£1.40 £1.17
25	MO118810275/0 Available to backorder	Spring	£2.95 £2.46
26	MO118810274/0 Available to backorder	Pin	£1.40 £1.17
29	MO322109959/0 Available to backorder	Left Side Cover	£3.10 £2.58
30	MO322109964/0 Available to backorder	Cover. Black	£10.70 £8.92
32	MO322109957/0 Available to backorder	Front Cover	£9.16 £7.63
34	MO118563517/1 Available to backorder	Electric Motor	£216.42 £180.35
36	MO322722834/0 Available to backorder	Upper Guard	£2.12 £1.77
38	MO112728706/0 In stock	Screw	£1.55 £1.29
39	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
40	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
41	MO112139440/0 Available to backorder	Key	£1.97 £1.64
