MULCHER 92 PRO 4WD KW - 2025 - Bertolini Ride On Mower Engine Diagram

Name: MULCHER 92 PRO 4WD KW - 2025 - Bertolini Ride On Mower Engine Diagram
SKU: mulcher_92_pro_4wd_kw_2025_engine-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

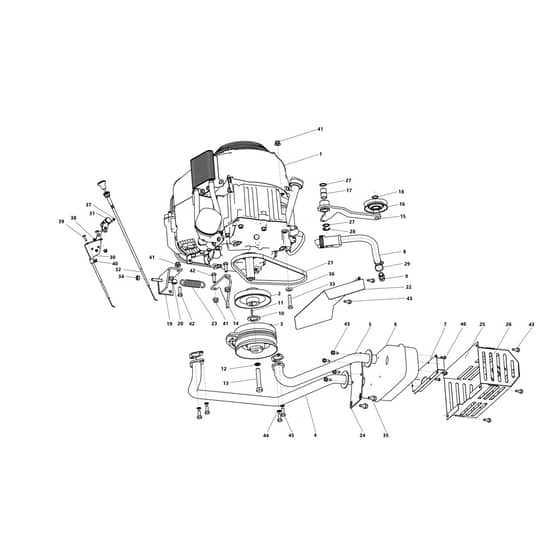

MULCHER 92 PRO 4WD KW - 2025 - Bertolini Ride On Mower Engine Diagram

Description

Bertolini MULCHER 92 PRO 4WD KW Parts Diagram

Model Year - 2025

Be the first to review this product

0 product questions

	Part No.	Details
2	EFSGN532151100 Available to backorder	Pulley (Motor)	£71.76 £59.80
3	EFSGN339242008 Available to backorder	Clutch	£390.00 £325.00
10	EFSGS532092208583 Available to backorder	Spacer	£3.90 £3.25
11	EFSGN311726101 Available to backorder	Key	£2.08 £1.73
16	EFSGN532150824 Available to backorder	Pulley	£23.54 £19.62
21	EFSGN272731273R Available to backorder	Belt	£56.14 £46.78
23	EFSGN315231234 Available to backorder	Spring	£7.70 £6.42
28	EFSGN311732009 Available to backorder	Ring	£0.90 £0.75
30	EFSGN000443001 Available to backorder	Lever	£25.38 £21.15
32	EFSGN443612016 Available to backorder	Cable	£34.96 £29.13
34	EFSGN311129501 Available to backorder	Nut	£0.90 £0.75
36	EFSGN311219523 Available to backorder	Washer	£2.14 £1.78
37	EFSGN309231535 Available to backorder	Screw	£0.90 £0.75
38	EFSG311129514 Available to backorder	Nut	£0.90 £0.75
40	EFSGN311129524 Available to backorder	Nut	£0.56 £0.47
41	EFSGN532150290 Available to backorder	Nut	£0.96 £0.80
42	EFSG947309503512 Available to backorder	Screw	£0.90 £0.75
44	EFSGN311214502 Available to backorder	Washer	£0.56 £0.47
45	EFSGN309503518 Available to backorder	Screw	£0.90 £0.75
46	EFSGN309578507 Available to backorder	Screw	£0.90 £0.75
