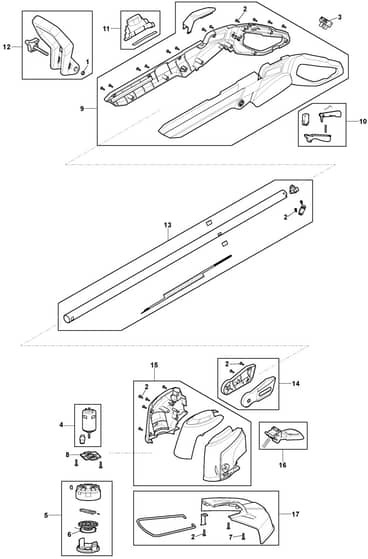

MTR 20 Li - 2021-2022 - 271102203/MUK - Mountfield Trimmer Main Assembly Diagram

Description

Mountfield MTR 20 Li Parts Diagram

Model Year - 2021-2022

Model Type - LT 20 Li A

Art.N - 271102203/MUK

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
2	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
3	MO118811080/0 Available to backorder	Battery Connector	£5.06 £4.22
4	MO118811088/0 Available to backorder	Electric Motor	£25.00 £20.83
5	MO118805320/0 In stock	Trimmer Head Assy	£10.76 £8.97
6	MO1911-9292-01 Available to backorder	Spool With Line	£11.58 £9.65
7	MO123878121/0 Available to backorder	Screw	£1.69 £1.41
8	MO118811086/0 Available to backorder	Motor Support	£2.26 £1.88
9	MO118811154/0 Available to backorder	Housing Kit	£23.92 £19.93
10	MO118811155/0 Available to backorder	Levers Kit	£10.49 £8.74
11	MO118811156/0 Available to backorder	Extension Shaft Button Kit	£2.40 £2.00
12	MO118811157/0 Available to backorder	Front Handle Assy	£19.99 £16.66
13	MO118811158/0 Available to backorder	Tube Assy	£27.74 £23.12
14	MO118811159/0 Available to backorder	Rotary Components Kit	£9.00 £7.50
15	MO118811160/0 Available to backorder	Motor Housing Kit	£21.18 £17.65
16	MO118811161/0 Available to backorder	Pedal Kit	£4.50 £3.75
17	MO118811162/0 Available to backorder	Stoneguard Assembly	£19.14 £15.95
