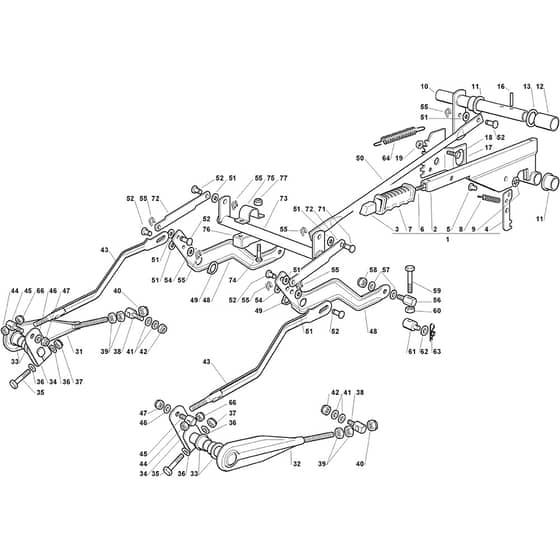

MTPH 16-102H - 2009 - 2T5653433/MFR - Mountfield Ride On Mower Cutting plate lifting Diagram

Name: MTPH 16-102H - 2009 - 2T5653433/MFR - Mountfield Ride On Mower Cutting plate lifting Diagram
SKU: mtph_16_102h_2t5653433_mfr_cutting_plate_lifting-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTPH 16-102H - 2009 - 2T5653433/MFR - Mountfield Ride On Mower Cutting plate lifting Diagram

Description

Mountfield MTPH 16-102H Parts Diagram

Product Name - MTPH 16-102H

Model Year - 2009

Model Type - TCP 102 Hydro

Art.N - 2T5653433/MFR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382300002/1 Available to backorder	Lever	£60.54 £50.45
2	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.26 £1.88
5	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Push Rod	£4.22 £3.52
7	MO125394504/1 Available to backorder	Knob	£2.53 £2.11
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO382000551/0 Available to backorder	Axle	£24.64 £20.53
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
12	MO125160025/1 Available to backorder	Spacer	£6.20 £5.17
13	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
16	MO112620206/0 Available to backorder	Pin	£1.40 £1.17
18	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
19	MO112293201/0 In stock	Nut	£1.69 £1.41
31	MO382318155/0 Available to backorder	Front Right Fulcrum Lever	£26.88 £22.40
32	MO382318157/0 Available to backorder	Left Fulcrum	£24.49 £20.41
33	MO125040605/0 Available to backorder	Bushing	£1.55 £1.29
34	MO325318161/1 Available to backorder	Lever	£9.00 £7.50
35	MO112691700/0 In stock	Screw	£1.82 £1.52
43	MO382000477/3 Available to backorder	Connecting Rod Assy	£18.31 £15.26
45	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
47	MO112155000/0 In stock	Nut	£1.55 £1.29
48	MO325318153/2 Available to backorder	Rear Lever	£14.50 £12.08
49	MO112609255/0 Available to backorder	Seeger	£1.55 £1.29
50	MO325033071/0 Available to backorder	Rod	£12.25 £10.21
51	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
52	MO125510053/2 Available to backorder	Pin	£1.97 £1.64
54	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
55	MO112436050/0 In stock	Plate	£1.82 £1.52
56	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
57	MO325670008/1 In stock	Washer	£1.55 £1.29
58	MO112156602/0 In stock	Nut	£1.40 £1.17
59	MO112794980/0 Available to backorder	Screw	£2.12 £1.77
60	MO112295200/0 In stock	Nut	£1.40 £1.17
61	MO125510070/1 Available to backorder	Pin	£6.20 £5.17
62	MO112523090/0 Available to backorder	Washer	£1.82 £1.52
63	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
64	MO125430218/1 Available to backorder	Spring	£5.76 £4.80
66	MO112293200/0 In stock	Nut	£1.55 £1.29
71	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
72	MO325318223/0 Available to backorder	Gearshift	£6.76 £5.63
73	MO382000547/0 Available to backorder	Axle	£23.88 £19.90
74	MO112815240/0 Available to backorder	Screw	£2.06 £1.72
75	MO325547203/0 Available to backorder	Plate	£5.48 £4.57
76	MO325785292/0 Available to backorder	Support	£11.47 £9.56
77	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
