MTPH 14_92 H - 2008 - 299964433/MF8 - Mountfield Ride On Mower Guards Diagram

Name: MTPH 14_92 H - 2008 - 299964433/MF8 - Mountfield Ride On Mower Guards Diagram
SKU: mtph_14_92_h_299964433_mf8_guards-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTPH 14_92 H - 2008 - 299964433/MF8 - Mountfield Ride On Mower Guards Diagram

Description

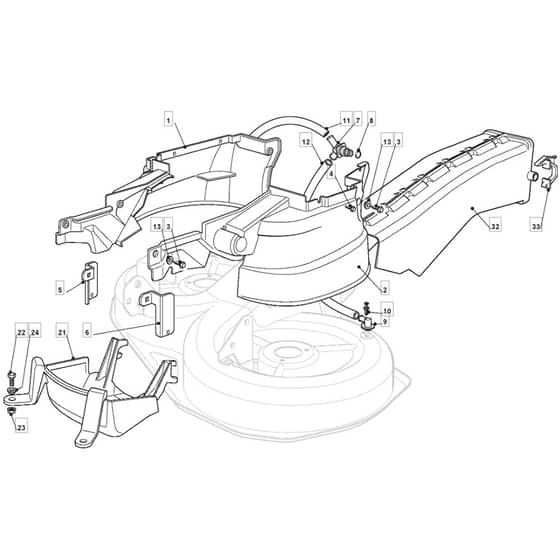

Mountfield MTPH 14_92 H Parts Diagram

Product Name - MTPH 14-92 H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299964433/MF8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325060121/2 Available to backorder	Right Belt Protection Carter	£84.36 £70.30
2	MO325060122/1 Available to backorder	Left Belt Protection Carter	£49.26 £41.05
3	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
4	MO112728535/0 Available to backorder	Screw	£1.55 £1.29
5	MO325774381/0 Available to backorder	Bracket	£4.37 £3.64
6	MO325774383/0 Available to backorder	Bracket	£4.37 £3.64
7	MO325033066/0 Available to backorder	Water Hose Connection	£3.38 £2.82
8	MO112000970/0 Available to backorder	Ring (Benzing)	£1.55 £1.29
9	MO325033065/0 Available to backorder	Water Hose Connection	£2.40 £2.00
10	MO112500030/0 In stock	Rivet	£1.49 £1.24
11	MO325869069/0 Available to backorder	Washing Tube	£20.14 £16.78
12	MO325869068/0 Available to backorder	Washing Tube	£8.74 £7.28
13	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
21	MO325060127/0 Available to backorder	Belt Protection	£14.78 £12.32
22	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
23	MO112154510/0 In stock	Nut	£1.55 £1.29
32	MO382108008/1 In stock	Conveyor	£67.57 £56.31
33	MO325774373/0 In stock	Release Clamp	£2.95 £2.46
