MTL 51 (EURO 5) - Oleo-Mac Earth Auger Engine Diagram

Name: MTL 51 (EURO 5) - Oleo-Mac Earth Auger Engine Diagram
SKU: mtl_51_euro_5_engine-group
Price: 0.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTL 51 (EURO 5) - Oleo-Mac Earth Auger Engine Diagram

Description

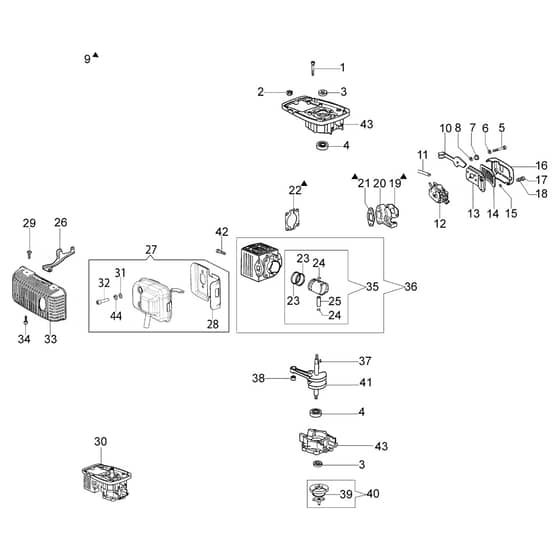

Oleo-Mac MTL 51 (EURO 5) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF3801066 Available to backorder	Screw	£0.90 £0.75
2	EF005000347A Available to backorder	Grommet	£0.90 £0.75
3	EF3050015AR Available to backorder	Seal Ring	£9.28 £7.73
4	EF3034012R Available to backorder	Bearing	£15.42 £12.85
5	EF3801012 Available to backorder	Screw	£0.90 £0.75
6	EF3833073R Available to backorder	Washer	£0.90 £0.75
7	EF4098019 Available to backorder	Washer	£2.76 £2.30
8	EF3833080 Available to backorder	Washer	£0.90 £0.75
9	EF375200087 Available to backorder	Gasket Set	£3.68 £3.07
11	EF375200089R Available to backorder	Tube	£3.68 £3.07
12	EF2318785AR Available to backorder	Carburetor	£95.06 £79.22
14	EF4098025 Available to backorder	Air Filter	£11.30 £9.42
15	EF3049005R Available to backorder	O-Ring	£0.92 £0.77
16	EF4100371C Available to backorder	Filter Cover	£8.74 £7.28
17	EF3908009 Available to backorder	Screw	£0.90 £0.75
18	EF3916005R Available to backorder	Washer	£1.32 £1.10
19	EF4174093AR Available to backorder	Gasket	£1.82 £1.52
20	EF375200069 Available to backorder	Insulator	£27.98 £23.32
21	EF375200075R Available to backorder	Gasket	£3.72 £3.10
22	EF375200078 Available to backorder	Gasket	£0.80 £0.67
23	EF074000405R Available to backorder	Piston Ring	£9.36 £7.80
24	EF004900061R Available to backorder	Ring	£1.98 £1.65
25	EF301000035R Available to backorder	Piston Pin	£3.68 £3.07
26	EF301000342AR Available to backorder	Support	£9.78 £8.15
27	EF375200133AR Available to backorder	Complete Muffler	£107.90 £89.92
29	EF3960073R Available to backorder	Screw	£0.90 £0.75
30	EF375200155R Available to backorder	Short Block	£305.52 £254.60
31	EF3916006R Available to backorder	Washer	£0.90 £0.75
32	EF005100906A Available to backorder	Screw	£0.90 £0.75
33	EF375200150R Available to backorder	Muffler Cover	£22.88 £19.07
34	EF4175080 Available to backorder	Screw	£2.26 £1.88
35	EF301000375B Available to backorder	Piston Assy Ø40	£81.54 £67.95
36	EF375200154 Available to backorder	Complete Cylinder Ø40	£206.16 £171.80
37	EF301000047 Available to backorder	Key	£1.84 £1.53
38	EF3037005 Available to backorder	Bearing	£19.38 £16.15
39	EF004900137BR Available to backorder	Spring	£5.44 £4.53
41	EF375200099AR Available to backorder	Crankshaft	£232.20 £193.50
42	EF3801025 Available to backorder	Screw	£0.90 £0.75
43	EF301000408 Available to backorder	Crankcase Assy	£99.50 £82.92
44	EF3819010R Available to backorder	Washer	£0.90 £0.75
