MTH 5600 - Efco Chainsaw Tank and air filter Diagram

Name: MTH 5600 - Efco Chainsaw Tank and air filter Diagram
SKU: mth_5600_tank_and_air_filter-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTH 5600 - Efco Chainsaw Tank and air filter Diagram

Description

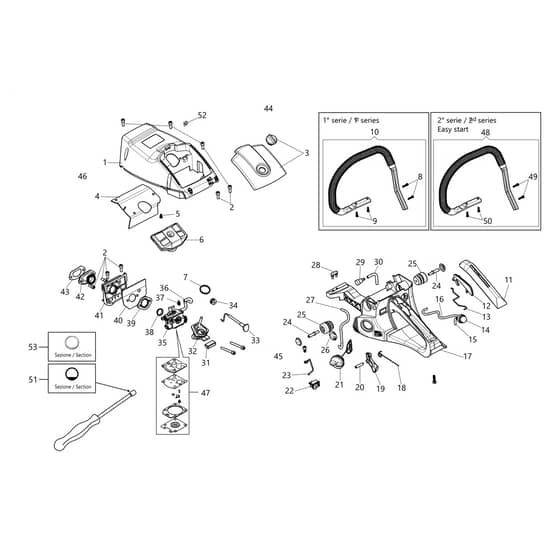

Efco MTH 5600 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	EF3801083R Available to backorder	Screw	£0.90 £0.75
3	EF50310262 Available to backorder	Air Filter Cover	£4.36 £3.63
6	EF50310272AR Available to backorder	Air Filter	£8.20 £6.83
7	EF50310155R Available to backorder	Gasket	£1.10 £0.92
11	EF50310089AR Available to backorder	Cover	£1.94 £1.62
13	EF50310088R Available to backorder	Throttle Rod	£1.34 £1.12
14	EF2318817R In stock	Air Purge	£7.14 £5.95
15	EF50310203R Available to backorder	Tube	£1.16 £0.97
16	EF50310202R Available to backorder	Tube	£2.18 £1.82
17	EF50310316r In stock	Tank Assy	£27.74 £23.12
18	EF50310091R Available to backorder	Spring	£1.24 £1.03
19	EF50310092AR Available to backorder	Throttle Lever	£1.34 £1.12
20	EF3022039R Available to backorder	Locking Sleeve	£1.10 £0.92
21	EF50310165AR Available to backorder	Tank Cap	£1.90 £1.58
22	EF50310143AR Available to backorder	Switch	£2.50 £2.08
23	EF50310144R Available to backorder	Cable	£1.68 £1.40
24	EF50310087R Available to backorder	Special Screw	£0.82 £0.68
25	EF50310139R Available to backorder	Av-Mount	£1.42 £1.18
26	EF094600450R In stock	Fuel Filter	£10.98 £9.15
27	EF50310337 Available to backorder	Fuel Line	£2.96 £2.47
28	EF50310140R Available to backorder	Av-Mount	£2.18 £1.82
29	EF61070011AR Available to backorder	Breather Valve	£11.04 £9.20
33	EF50310042AR Available to backorder	Lever	£1.68 £1.40
36	EF50310096 Available to backorder	Suction Tube	£1.92 £1.60
37	EF4098377R Available to backorder	Band	£1.84 £1.53
38	EF50310050R Available to backorder	Ring	£0.84 £0.70
39	EF50310051R Available to backorder	Flange	£0.68 £0.57
40	EF50310052R Available to backorder	Gasket	£1.10 £0.92
41	EF50310053R Available to backorder	Support	£2.60 £2.17
42	EF50310008R Available to backorder	Manifold	£2.54 £2.12
43	EF50310145R Available to backorder	Gasket	£1.10 £0.92
44	EF50310037AR Available to backorder	Knob	£1.48 £1.23
47	EF2318671 Available to backorder	Repair Kit	£39.65 £33.04
48	EF50312092R Available to backorder	Handle	£28.24 £23.53
50	EF3960165R Available to backorder	Screw	£0.88 £0.73
52	EF50170032R Available to backorder	Deflector (Summer.Winter)	£0.90 £0.75
53	EF2304001R Available to backorder	Screwdriver	£17.46 £14.55
