MTH 5600 - Efco Chainsaw Crankcase Diagram

Name: MTH 5600 - Efco Chainsaw Crankcase Diagram
SKU: mth_5600_crankcase-group
Price: 0.74 GBP
Availability: InStock

Part No. mth_5600_crankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTH 5600 - Efco Chainsaw Crankcase Diagram

Description

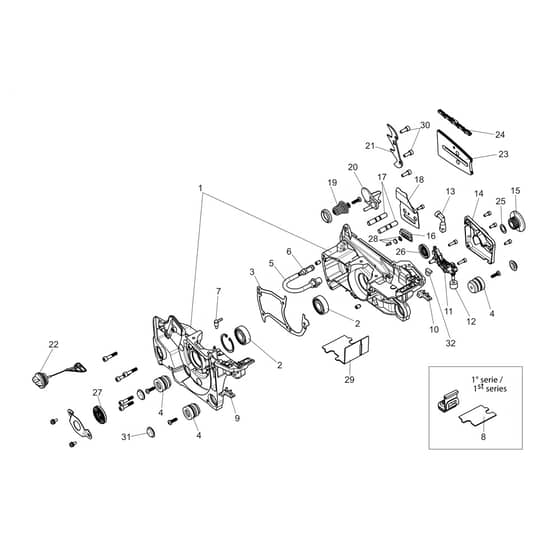

Efco MTH 5600 Parts Diagram

	Part No.	Details
1	EF50312001R Available to backorder	Crankcase Assy	£49.44 £41.20
2	EF3034035R Available to backorder	Bearing	£4.08 £3.40
3	EF50310109R Available to backorder	Gasket	£2.00 £1.67
4	EF50310084R Available to backorder	Av-Mount	£1.70 £1.42
6	EF50310079R Available to backorder	Oil Filter	£1.92 £1.60
7	EF50310101R Available to backorder	Fitting	£1.70 £1.42
9	EF50310104R Available to backorder	Av-Mount	£1.61 £1.34
10	EF50310103R Available to backorder	Av-Mount	£1.61 £1.34
11	EF50312002R Available to backorder	Oil Pump	£6.36 £5.30
12	EF50310080R Available to backorder	Sponge	£0.89 £0.74
13	EF50310077R Available to backorder	Hose	£1.75 £1.46
14	EF50310071R Available to backorder	Oil Pump Cover	£1.63 £1.36
15	EF50310072R Available to backorder	Worm Gear	£2.42 £2.02
17	EF50310112R Available to backorder	Stud	£1.32 £1.10
18	EF50310074R Available to backorder	Plate	£1.61 £1.34
19	EF50310085R Available to backorder	Spring	£1.32 £1.10
20	EF50310075R Available to backorder	Guard	£1.61 £1.34
21	EF50310142R Available to backorder	Spike	£1.70 £1.42
22	EF50310166AR Available to backorder	Oil Cap	£2.11 £1.76
23	EF50310214R Available to backorder	Bar 18 - cm 46	£42.24 £35.20
23	EF50310215R Available to backorder	Bar 20 - cm 51	£60.60 £50.50
23	EF50310234R Available to backorder	Bar 20 - cm 51	£55.44 £46.20
25	EF50310169R Available to backorder	Washer	£0.94 £0.78
26	EF3050053R Available to backorder	Seal Ring	£1.44 £1.20
27	EF3050054R Available to backorder	Seal Ring	£1.70 £1.42
28	EF50310375 Available to backorder	Reed Valve Kit	£2.88 £2.40
30	EF3891036R Available to backorder	Screw	£1.37 £1.14
