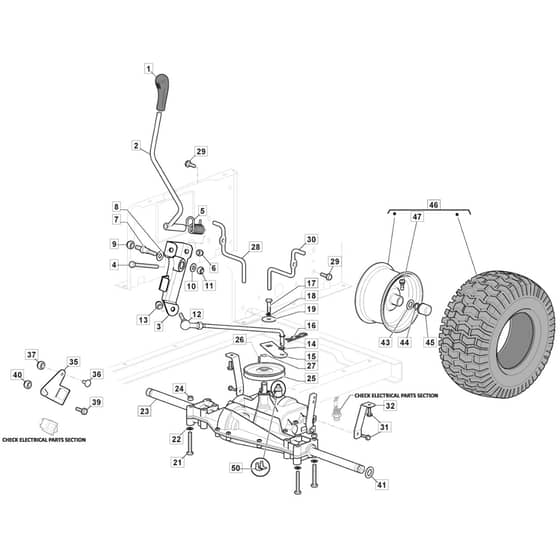

MTF 84 M - 2022-2023 - 2T2005403/CAS - Mountfield Ride On Mower Transmission Diagram

Name: MTF 84 M - 2022-2023 - 2T2005403/CAS - Mountfield Ride On Mower Transmission Diagram
SKU: mtf_84_m_2t2005403_cas_transmission-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTF 84 M - 2022-2023 - 2T2005403/CAS - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield MTF 84 M Parts Diagram

Product Name - MTF 84M

Model Year - 2022-2023

Model Type - MP 84

Art.N - 2T2005403/CAS

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394532/0 Out of stock	Knob	£5.02 £4.18
2	MO382318257/0 Out of stock	Lever	£16.67 £13.89
3	MO382774259/1 Out of stock	Clamp	£12.86 £10.72
4	MO112692050/0 In stock	Screw	£1.75 £1.46
5	MO125430226/0 Out of stock	Spring	£2.17 £1.81
7	MO125510035/0 Out of stock	Pin	£3.53 £2.94
8	MO322672151/0 Out of stock	Antifriction Washer	£1.75 £1.46
10	MO112523060/0 In stock	Washer	£1.49 £1.24
11	MO112155010/0 Out of stock	Nut	£2.04 £1.70
12	MO382000567/1 Out of stock	Gear Rod Assy	£24.83 £20.69
13	MO112154210/0 In stock	Nut	£1.80 £1.50
14	MO112521340/0 Out of stock	Washer	£1.36 £1.13
15	MO325318235/0 Out of stock	Lever	£2.44 £2.03
16	MO112141418/0 In stock	Cotter Pin	£1.49 £1.24
17	MO112791011/0 Out of stock	Screw for LANGHUI Transmission	£1.36 £1.13
17	MO112735520/0 Out of stock	Screw for PEERLESS Transmission	£1.49 £1.24
18	MO112540040/0 Out of stock	Washer	£1.36 £1.13
19	MO322680009/0 Out of stock	Washer	£1.75 £1.46
21	MO112691600/0 Out of stock	Screw	£1.75 £1.46
22	MO112521350/0 Out of stock	Washer	£1.63 £1.36
23	MO118400910/4 Out of stock	Transmission Mst 205-591 PEERLESS Transmission	£509.23 £424.36
23	MO118400922/1 Out of stock	Transmission - 630030 LANGHUI Transmission	£1,405.63 £1,171.36
24	MO112155000/0 In stock	Nut	£1.63 £1.36
25	MO182601509/0 Out of stock	Pulley	£69.96 £58.30
26	MO112139430/0 In stock	Key	£1.90 £1.58
27	MO112608950/0 Out of stock	Seeger	£1.63 £1.36
28	MO125270329/0 Out of stock	Belt Guide	£4.20 £3.50
29	MO112735599/0 Out of stock	Screw	£1.49 £1.24
30	MO125270330/0 Out of stock	Belt Guide	£4.20 £3.50
31	MO125943009/0 Out of stock	Screw	£1.56 £1.30
32	MO325785315/0 Out of stock	Support	£5.42 £4.52
35	MO325785483/1 Out of stock	Support	£4.20 £3.50
36	MO112815200/0 In stock	Screw	£1.63 £1.36
37	MO112154510/0 In stock	Nut	£1.63 £1.36
39	MO112792611/0 Out of stock	Screw	£1.49 £1.24
41	MO125670005/2 Out of stock	Washer	£3.92 £3.27
44	MO112001010/0 In stock	Benzing Ring	£1.75 £1.46
45	MO322110233/0 In stock	Hub Cover Standard Black	£1.80 £1.50
46	MO382680104/0 Out of stock	Wheel Assy	£160.28 £133.57
47	MO125950000/0 Out of stock	Valve	£4.92 £4.10
50	MO133800001/0 Out of stock	Male Faston Terminal 250 Gmg40164.51.72.	£1.36 £1.13
