MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Controls Diagram

Name: MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Controls Diagram
SKU: mtf_1430_hd_2t2110483_mtf_controls-group
Price: 1.11 GBP
Availability: InStock

Part No. mtf_1430_hd_2t2110483_mtf_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Controls Diagram

Description

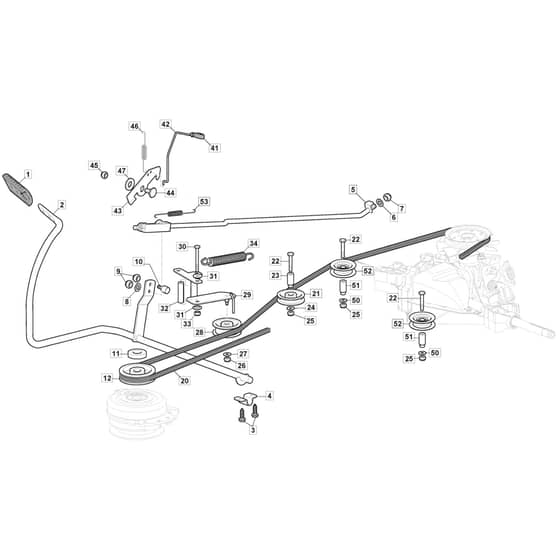

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF

	Part No.	Details
1	MO325110409/0 Available to backorder	Clamp Cover	£7.18 £5.98
2	MO382000641/1 Available to backorder	Pedal	£52.08 £43.40
3	MO112735599/0 In stock	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Plate	£4.37 £3.64
5	MO382000636/0 Available to backorder	Rod To 07-11-2021	£29.57 £24.64
5	MO382000636/1 Available to backorder	Brake Rod Assy From 08-11-2021	£28.69 £23.91
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO112156602/0 In stock	Nut	£1.39 £1.16
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin	£3.52 £2.93
11	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
12	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
20	MO135062020/1 In stock	Trapezoidal Belt	£38.77 £32.31
21	MO325601599/0 In stock	Pulley (Steel)	£19.18 £15.98
21	MO125601613/1 In stock	Pulley (Plastic)	£16.99 £14.16
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer	£2.82 £2.35
24	MO112523060/0 In stock	Washer	£1.55 £1.29
25	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO125601554/0 In stock	Pulley	£25.66 £21.38
29	MO382318245/1 Available to backorder	Tightener Lever	£19.70 £16.42
30	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
31	MO125038021/0 Available to backorder	Bushing	£1.33 £1.11
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
41	MO125394509/1 In stock	Knob	£2.53 £2.11
42	MO125033113/0 Available to backorder	Rod	£3.52 £2.93
43	MO325253011/1 Available to backorder	Hook	£3.66 £3.05
44	MO122524970/3 Available to backorder	Pin	£1.70 £1.42
46	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
50	MO112521350/0 In stock	Washer	£1.55 £1.29
51	MO125160111/0 Available to backorder	Spacer	£4.24 £3.53
52	MO125601612/0 In stock	Pulley (Steel)	£23.57 £19.64
53	MO125430269/2 Available to backorder	Spring	£2.40 £2.00
