MT 6300 - Efco Chainsaw Engine and starter Diagram

Description

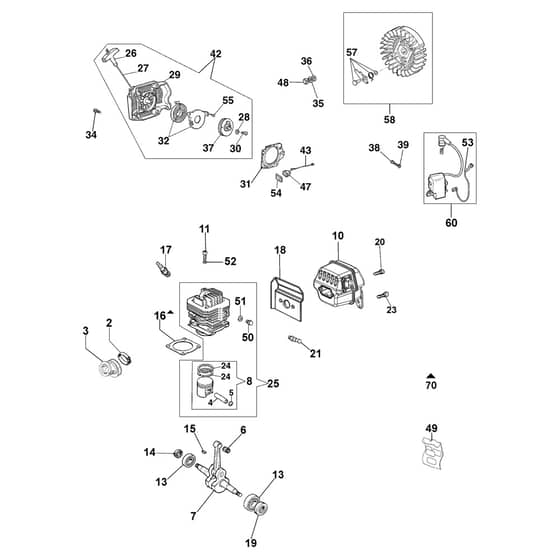

Efco MT 6300 Parts Diagram

	Part No.	Details
1	EF50200015AR Available to backorder	Band	£13.20 £11.00
3	EF50010026R Available to backorder	Manifold	£17.76 £14.80
4	EF50010031 Available to backorder	Piston Pin	£5.64 £4.70
5	EF007201198 Available to backorder	Ring	£2.00 £1.67
6	EF3037014R Available to backorder	Bearing	£15.24 £12.70
8	EF50092013A Available to backorder	Piston Assy Ø48	£118.68 £98.90
11	EF005100906A Available to backorder	Screw	£1.08 £0.90
13	EF3034012R Available to backorder	Bearing	£15.96 £13.30

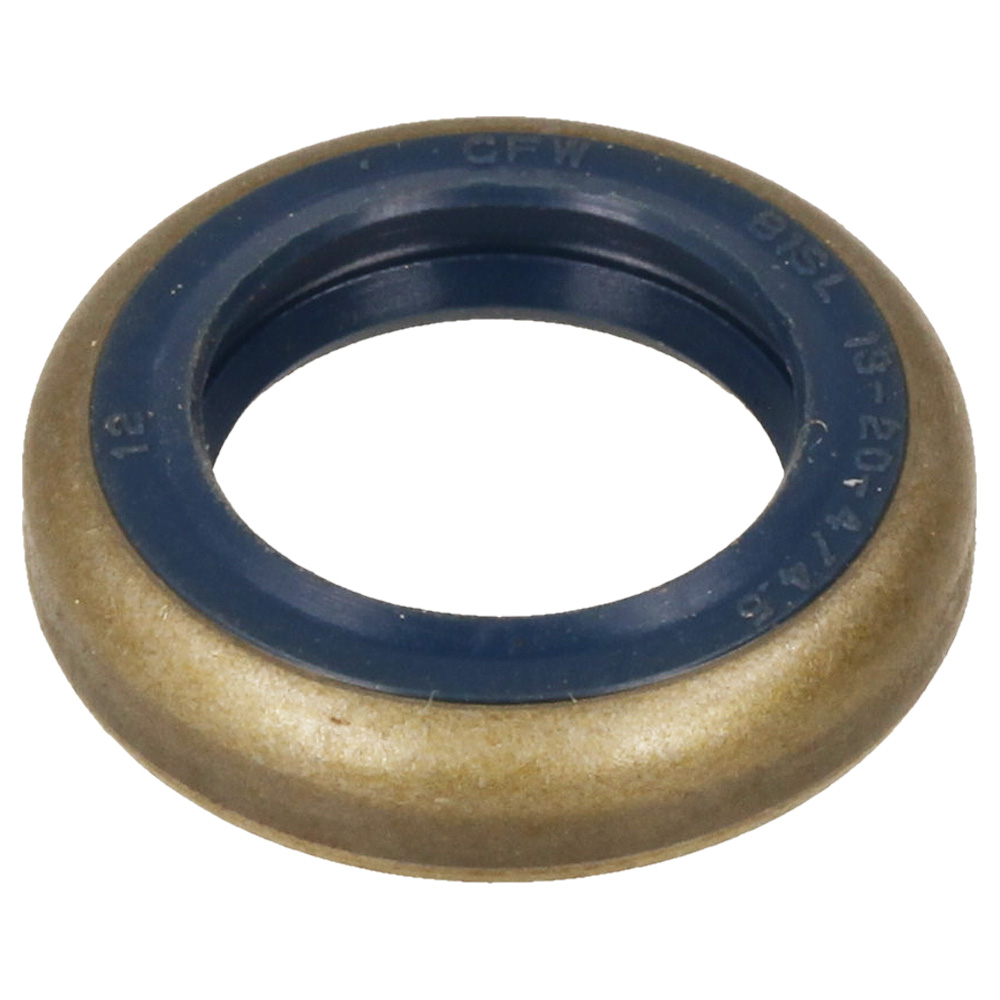

14	EF094500004R Available to backorder	Seal Ring	£10.20 £8.50
15	EF094500028R Available to backorder	Key	£2.00 £1.67
16	EF50010046DR Available to backorder	Gasket	£3.12 £2.60
17	8731 In stock	Spark Plug	£3.86 £3.22
18	EF50010058A Available to backorder	Gasket	£9.00 £7.50
19	EF007201313R Available to backorder	Seal Ring	£11.40 £9.50
20	EF3891038R Available to backorder	Screw	£3.06 £2.55
21	EF50010215R Available to backorder	Decompressor	£33.96 £28.30
23	EF3891036R Available to backorder	Screw	£1.37 £1.14
25	EF50092028B Available to backorder	Complete Cylinder Ø48	£268.80 £224.00
26	EF097000064AR Available to backorder	Starter Handle	£3.84 £3.20
27	EF098000079R Available to backorder	Starter Rope	£3.01 £2.51
28	EF3918006 Available to backorder	Washer	£1.08 £0.90
29	EF50010172BR Available to backorder	Starter Case	£30.12 £25.10
30	EF3908036 Available to backorder	Screw	£1.08 £0.90
31	EF50010019A Available to backorder	Flange	£9.00 £7.50
32	EF098000060AR Available to backorder	Spring	£20.76 £17.30
34	EF097000092AR Available to backorder	Screw	£1.08 £0.90
35	EF3833080 Available to backorder	Washer	£1.08 £0.90
36	EF3916009 Available to backorder	Washer	£1.08 £0.90
37	EF52010439CR Available to backorder	Pulley	£15.72 £13.10
39	EF3916004R Available to backorder	Washer	£1.66 £1.38
43	EF097000121A Available to backorder	Cable	£5.64 £4.70

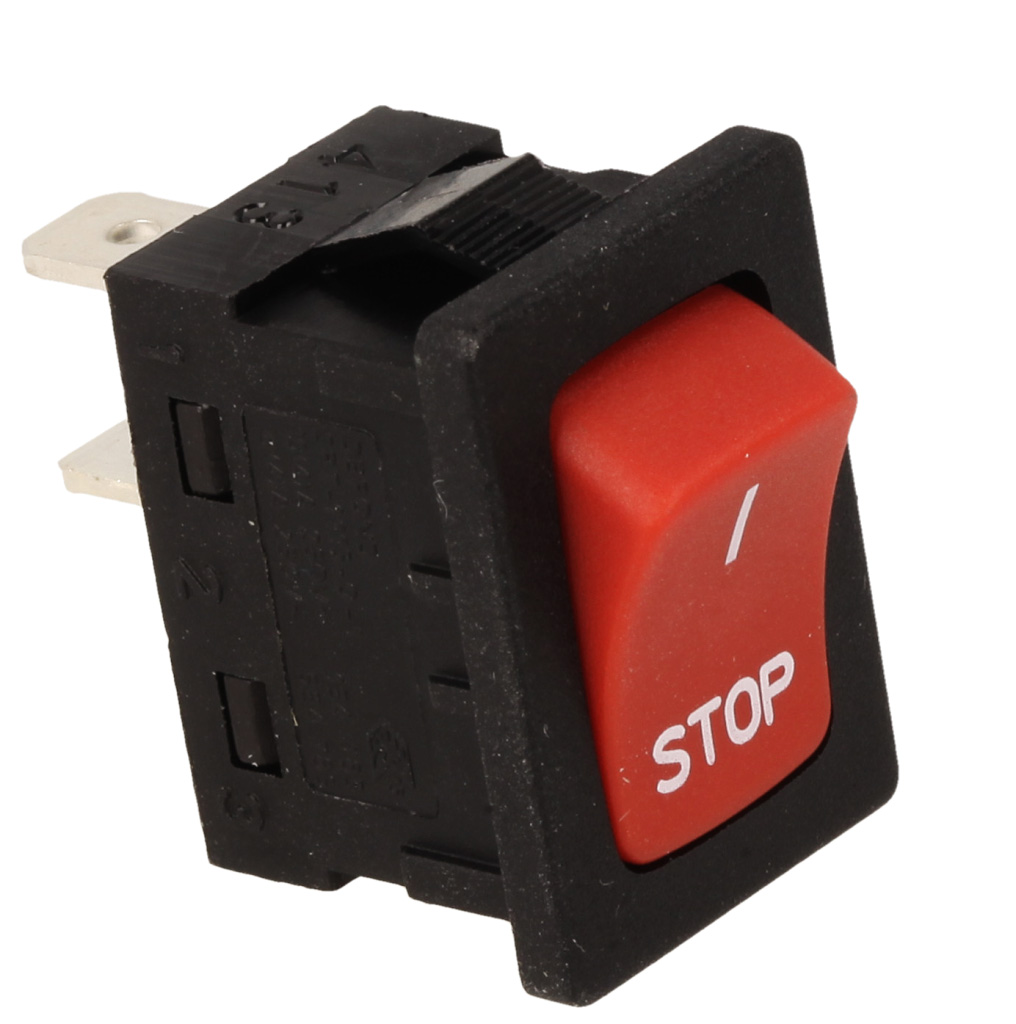

47	EF2317021R In stock	Switch	£9.32 £7.77
48	EF004000142 Available to backorder	Nut	£1.08 £0.90
50	EF52010093 Available to backorder	Screw	£9.00 £7.50
51	EF3078012 Available to backorder	Washer	£1.08 £0.90
52	EF3833076 Available to backorder	Washer	£1.08 £0.90
54	EF2317013 Available to backorder	Guard	£3.84 £3.20
55	EF3960017AR Available to backorder	Screw	£1.08 £0.90
57	EF52012027 Available to backorder	Pawl Kit	£19.44 £16.20
58	EF50010331BR Available to backorder	Flywheel	£99.96 £83.30
60	EF50020061AR Available to backorder	Ignition Coil	£98.88 £82.40
70	EF50012052B Available to backorder	Gasket Set	£22.08 £18.40
