MT 500e Kit - 2022-2025 - 278722108/ST3 - Stiga Brushcutter Pole Hedge Trimmer Diagram

Name: MT 500e Kit - 2022-2025 - 278722108/ST3 - Stiga Brushcutter Pole Hedge Trimmer Diagram
SKU: mt_500e_kit_278722108_st3_pole_hedge_trimmer-group
Price: 1.11 GBP
Availability: InStock

Part No. mt_500e_kit_278722108_st3_pole_hedge_trimmer-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MT 500e Kit - 2022-2025 - 278722108/ST3 - Stiga Brushcutter Pole Hedge Trimmer Diagram

Description

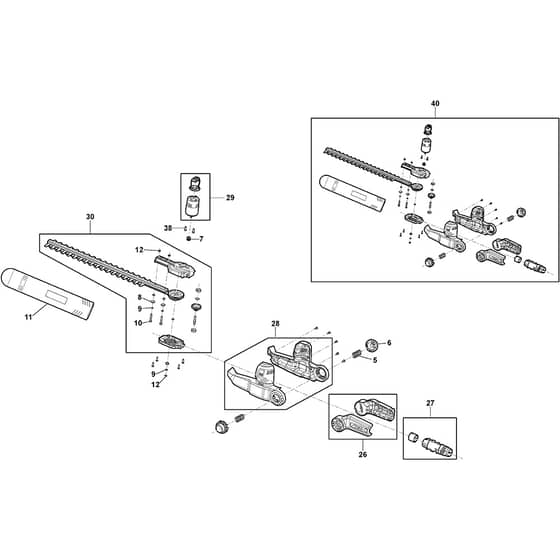

Stiga MT 500e Kit Parts Diagram

Product Name - MT 500e Kit

Model Year - 2022-2025

Model Type - MT 500 LI 48

Art.N - 278722108/ST3

Engine Model -

	Part No.	Details
1	MO118810866/0 In stock	Spring	£1.33 £1.11
6	MO118810867/0 Available to backorder	Rotation Button	£4.78 £3.98
7	MO118810868/0 Available to backorder	Pinion	£4.88 £4.07
8	MO2312150 Available to backorder	Washer	£1.33 £1.11
9	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
10	MO2135050 Available to backorder	Screw	£1.33 £1.11
11	MO118810869/0 Available to backorder	Blade Cover	£5.34 £4.45
12	MO112154330/0 In stock	Nut	£1.55 £1.29
26	MO118810889/0 Available to backorder	Rotation Joint Kit	£10.56 £8.80
27	MO118810890/0 Available to backorder	Joint Kit	£7.86 £6.55
28	MO118810891/0 Available to backorder	Housing Kit	£37.04 £30.87
29	MO118810892/0 Available to backorder	Motor Assy	£54.90 £45.75
30	MO118810893/0 Available to backorder	Gear Case-Blade Assy	£97.14 £80.95
38	MO2135010 Available to backorder	Screw	£1.33 £1.11
40	MO118811505/0 Available to backorder		£178.14 £148.45
