MT 500e - 2022-2025 - 278720008/ST3 - Stiga Brushcutter Body Work Diagram

Name: MT 500e - 2022-2025 - 278720008/ST3 - Stiga Brushcutter Body Work Diagram
SKU: mt_500e_278720008_st3_body_work-group
Price: 1.05 GBP
Availability: InStock

Part No. mt_500e_278720008_st3_body_work-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

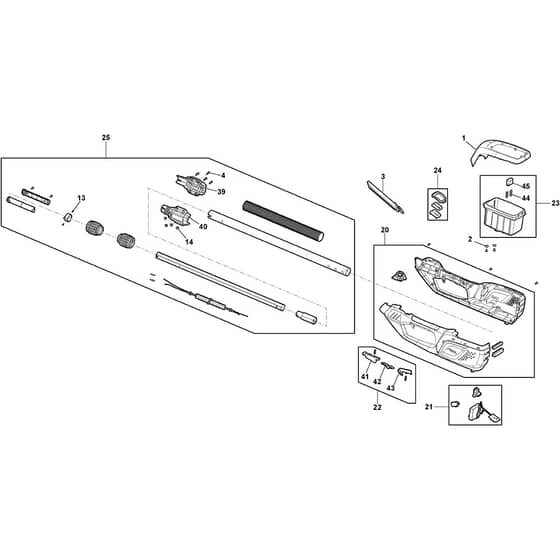

MT 500e - 2022-2025 - 278720008/ST3 - Stiga Brushcutter Body Work Diagram

Description

Stiga MT 500e Parts Diagram

Product Name - MT 500e

Model Year - 2022-2025

Model Type - MT 500 LI 48

Art.N - 278720008/ST3

Engine Model -

	Part No.	Details
1	MO118810865/0 Available to backorder	Cover	£3.79 £3.16
2	MO2312120 Available to backorder	Flat Washer	£1.39 £1.16
3	MO1911-9260-01 Available to backorder	Padded Single Harness	£30.66 £25.55
4	MO112727807/0 In stock	Screw	£1.55 £1.29
13	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
14	MO112154510/0 In stock	Nut	£1.55 £1.29
20	MO118810883/0 Available to backorder	Housing Kit	£40.82 £34.02
21	MO118810884/0 Available to backorder	Pcb And Electronics Assy	£74.62 £62.18
22	MO118810885/0 Available to backorder	Levers Kit	£6.77 £5.64
23	MO118810886/0 Available to backorder	Battery Housing Kit	£8.94 £7.45
24	MO118810887/0 Available to backorder	Switch Cover Kit	£3.52 £2.93
25	MO118810888/0 Available to backorder	Extension Shafts Assy	£101.34 £84.45
39	MO118811419/0 Available to backorder	Right Extension Pole Joint	£4.30 £3.58
40	MO118811420/0 Available to backorder	Left Extension Pole Joint	£4.30 £3.58
41	MO118821336/0 Available to backorder	Switch Button	£1.70 £1.42
42	MO118821334/0 Available to backorder	Connecting Rod	£1.26 £1.05
43	MO118821335/0 Available to backorder	Self-Locking Button	£1.33 £1.11
44	MO118821332/0 Available to backorder	Battery Pack Spring	£1.33 £1.11
45	MO118821331/0 Available to backorder	Battery Pack Eject Button	£1.33 £1.11
