MT 1100 - 2008 - 291800013/MO8 - Mountfield Trimmer Main Assembly Diagram

Description

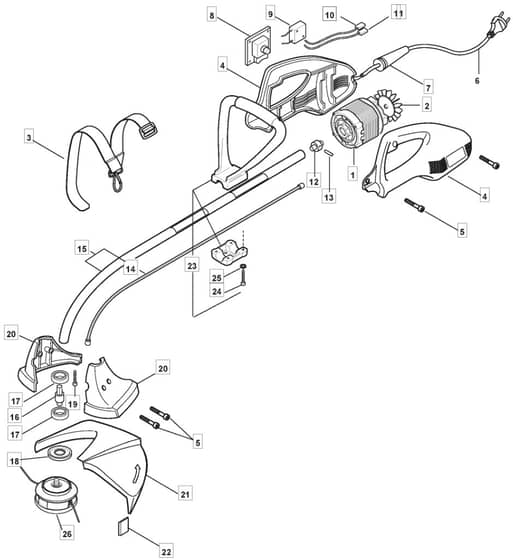

Mountfield MT 1100 Parts Diagram

Model Year - 2008

Model Type - TR 1000

Art.N - 291800013/MO8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO8253840 Available to backorder	Engine Assy	£184.60 £153.83
2	MO4564000 Available to backorder	Fan	£5.76 £4.80
3	MO118804015/1 Available to backorder	Brace	£58.54 £48.78
8	MO3211200 Available to backorder	Switch	£8.02 £6.68
12	MO3750200 Available to backorder	Flexible Transm. Shaff Joint	£1.69 £1.41
13	MO3314170 Available to backorder	Elastic Plug	£1.33 £1.11
14	MO1L4253830/1 Available to backorder	Flexible Shaft	£46.68 £38.90
15	MO3L4252180/1 Available to backorder	Transmission Tube Ass.Y	£90.10 £75.08
16	MO3643020 Available to backorder	Head Shaft	£15.84 £13.20
17	MO119216035/0 Available to backorder	Ball Bearing	£3.52 £2.93
18	MO3614630 Available to backorder	Upper Ring Nut	£14.64 £12.20
19	MO2123100 Available to backorder	Screw	£1.28 £1.07
20	MO8563240 Available to backorder	Head Half-Casing Set	£18.94 £15.78
21	MO3L4563231/1 Available to backorder	Safety Cover Ass.Y	£13.51 £11.26
22	MO3614640 Available to backorder	Line Cutter Blade	£4.12 £3.43
24	MO2123110 Available to backorder	Screw	£1.33 £1.11
25	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
26	MO323155002/1 Available to backorder	Nylon Head 2 Wires Tap & Go	£23.04 £19.20
