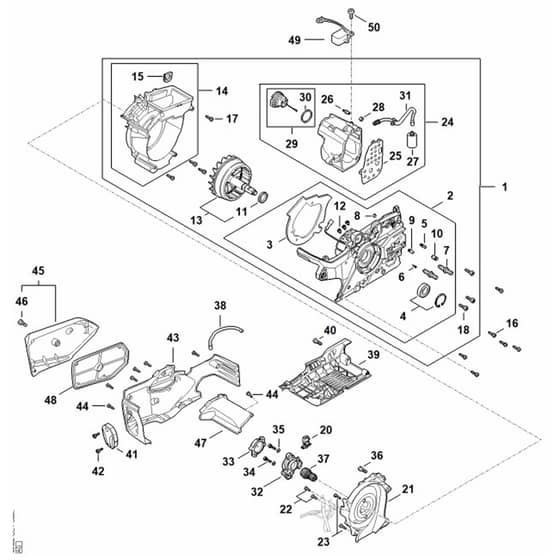

Stihl MSA300.1 - Motor Housing, Electric Motor, Oil Tank - Parts Diagram

Name: Stihl MSA300.1 - Motor Housing, Electric Motor, Oil Tank - Parts Diagram
SKU: msa300_1_motor_housing_electric_motor_oil_tank-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA300.1 - Motor Housing, Electric Motor, Oil Tank - Parts Diagram

Description

Stihl MSA300.1 - Motor Housing, Electric Motor, Oil Tank - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STMA02 600 4901 Available to backorder	Electric motor with housing (Contains 2 - 15 + 17 + 18 + 24 - 31)	£292.32 £243.60
2	STMA02 600 1604 Available to backorder	Mounting plate (Contains 3 - 10 + 12)	£146.30 £121.92
3	STMA02 029 0502 Available to backorder	Gasket	£2.98 £2.48
4	STMA02 007 1001 Available to backorder	Ball bearing kit	£14.62 £12.18
5	ST1121 162 5200 In stock	Pin	£1.42 £1.18
6	ST0000 974 1200 Available to backorder	Notched pin 2.6x8	£0.66 £0.55
7	ST0000 664 2406 Available to backorder	Collar screw M8	£3.40 £2.83
8	ST0000 988 8604 Available to backorder	Sleeve	£1.10 £0.92
9	ST1120 162 5200 In stock	Pin	£1.42 £1.18
10	ST1128 640 9100 Available to backorder	Valve	£4.40 £3.67
11	ST9503 003 8759 Available to backorder	Grooved ball bearing DIN625-6803-2RS	£8.80 £7.33
12	ST9022 313 0610 Available to backorder	Spline screw IS-M4x6	£0.66 £0.55
13	STMA02 600 1101 Available to backorder	Rotor (Contains 11)	£173.80 £144.83
14	STMA02 600 4407 Available to backorder	Spiral housing (Contains 15)	£24.64 £20.53
15	STMA02 432 9300 Available to backorder	Grommet	£2.20 £1.83
16	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.76 £0.63
18	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.89 £0.74
20	STMA02 430 0503 Available to backorder	Switch	£3.64 £3.03
21	STMA02 600 4405 Available to backorder	Spiral housing	£15.40 £12.83
23	ST9022 313 0651 Available to backorder	Spline screw IS-M4x10	£0.76 £0.63
24	STMA02 350 0301 Available to backorder	Oil tank (Contains 25 - 31)	£44.44 £37.03
25	STMA02 029 0500 Available to backorder	Gasket	£2.08 £1.73
26	ST0000 988 5224 Available to backorder	Connector	£2.98 £2.48
27	STMA01 640 3801 Available to backorder	Pickup body	£4.84 £4.03
28	ST1122 649 5000 In stock	Sealing ring B4x2	£0.88 £0.73
29	ST0000 350 0529 Available to backorder	Filler cap (Contains 30)	£9.14 £7.62
30	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
31	STMA02 647 9402 Available to backorder	Hose	£5.72 £4.77
32	STMA02 640 3200 Available to backorder	Oil pump	£96.80 £80.67
33	STMA02 641 7400 Available to backorder	Cap	£3.40 £2.83
34	ST9022 313 0679 Available to backorder	Spline screw IS-M4x16	£0.76 £0.63
35	ST9291 021 0100 In stock	Washer 4.3	£0.47 £0.39
37	STMA02 647 2000 Available to backorder	Worm	£4.72 £3.93
38	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£3.96 £3.30
39	STMA02 798 2201 Available to backorder	Base plate	£11.88 £9.90
41	STMA02 084 1600 Available to backorder	Cover	£2.86 £2.38
42	ST9074 477 2980 Available to backorder	Pan head self-tapping screw IS-P4x12	£0.76 £0.63
43	STMA02 602 1202 Available to backorder	Motor housing	£34.98 £29.15
46	ST9022 319 1028 In stock	Screw IS-M5x14	£0.76 £0.63
47	STMA02 141 6300 Available to backorder	Air baffle	£6.50 £5.42
48	STMA02 080 1903 Available to backorder	Filter	£13.10 £10.92
49	STMA01 400 6303 Available to backorder	Oil sensor	£50.82 £42.35
50	ST9022 313 0650 Available to backorder	Spline screw IS-M4x10	£0.76 £0.63
