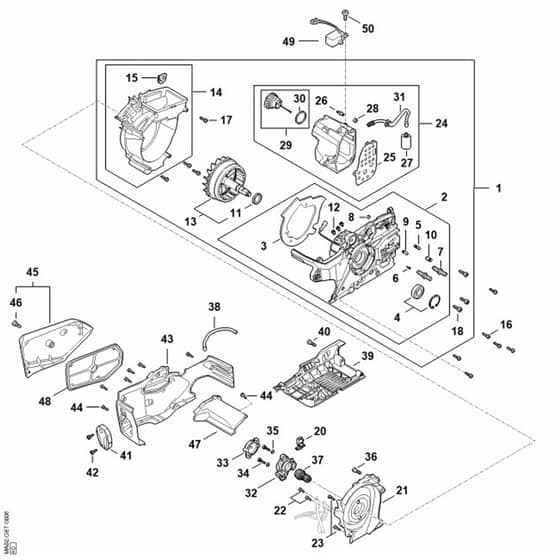

Stihl MSA300.1 C-O - Motor Housing, Electric Motor, Oil Tank - Parts Diagram

Name: Stihl MSA300.1 C-O - Motor Housing, Electric Motor, Oil Tank - Parts Diagram
SKU: msa300_1_c_o_motor_housing_electric_motor_oil_tank-group
Price: 0.44 GBP
Availability: InStock

Part No. msa300_1_c_o_motor_housing_electric_motor_oil_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA300.1 C-O - Motor Housing, Electric Motor, Oil Tank - Parts Diagram

Description

Stihl MSA300.1 C-O - Motor Housing, Electric Motor, Oil Tank - Parts Diagram

	Part No.	Details
1	STMA02 600 4901 Available to backorder	Electric motor with housing (Contains 2 - 15 + 17 + 18 + 24 - 31)	£327.36 £272.80
2	STMA02 600 1604 Available to backorder	Mounting plate (Contains 3 - 10 + 12)	£146.28 £121.90
3	STMA02 029 0502 Available to backorder	Gasket	£3.08 £2.57
4	STMA02 007 1001 Available to backorder	Ball bearing kit	£15.12 £12.60
5	ST1121 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
6	ST0000 974 1200 In stock	Notched pin 2.6x8	£0.68 £0.57
7	ST0000 664 2406 In stock	Collar screw M8	£3.65 £3.04
8	ST0000 988 8604 Available to backorder	Sleeve	£1.14 £0.95
9	ST1120 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
10	ST1128 640 9100 In stock	Valve	£4.72 £3.93
11	ST9503 003 8759 Available to backorder	Grooved ball bearing DIN625-6803-2RS	£9.11 £7.59
12	ST9022 313 0610 In stock	Spline screw IS-M4x6	£0.68 £0.57
13	STMA02 600 1101 Available to backorder	Rotor (Contains 11)	£173.76 £144.80
14	STMA02 600 4407 Available to backorder	Spiral housing (Contains 15)	£25.49 £21.24
15	STMA02 432 9300 Available to backorder	Grommet	£2.28 £1.90
16	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
18	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.95 £0.79
20	STMA02 430 0503 Available to backorder	Switch	£3.77 £3.14
21	STMA02 600 4405 Available to backorder	Spiral housing	£15.94 £13.28
23	ST9022 313 0651 Available to backorder	Spline screw IS-M4x10	£0.79 £0.66
24	STMA02 350 0301 Available to backorder	Oil tank (Contains 25 - 31)	£45.97 £38.31
25	STMA02 029 0500 Available to backorder	Gasket	£2.15 £1.79
26	ST0000 988 5224 Available to backorder	Connector	£3.08 £2.57
27	STMA01 640 3801 Available to backorder	Pickup body	£5.00 £4.17
28	ST1122 649 5000 In stock	Sealing ring B4x2	£0.95 £0.79
29	ST0000 350 0529 In stock	Filler cap (Contains 30)	£9.80 £8.17
30	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
31	STMA02 647 9402 Available to backorder	Hose	£5.92 £4.93
32	STMA02 640 3200 Available to backorder	Oil pump	£96.84 £80.70
33	STMA02 641 7400 Available to backorder	Cap	£3.52 £2.93
34	ST9022 313 0679 In stock	Spline screw IS-M4x16	£0.79 £0.66
35	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
37	STMA02 647 2000 Available to backorder	Worm	£4.88 £4.07
38	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£4.24 £3.53
39	STMA02 798 2201 Available to backorder	Base plate	£12.29 £10.24
41	STMA02 084 1600 Available to backorder	Cover	£2.96 £2.47
42	ST9074 477 2980 Available to backorder	Pan head self-tapping screw IS-P4x12	£0.79 £0.66
43	STMA02 602 1202 Available to backorder	Motor housing	£36.19 £30.16
45	STMA02 140 1005 Available to backorder	Filter cover (Contains 46)	£22.20 £18.50
46	ST9022 319 1028 In stock	Screw IS-M5x14	£0.83 £0.69
47	STMA02 141 6300 Available to backorder	Air baffle	£6.72 £5.60
48	STMA02 080 1903 Available to backorder	Filter	£13.55 £11.29
49	STMA01 400 6303 Available to backorder	Oil sensor	£52.57 £43.81
50	ST9022 313 0650 Available to backorder	Spline screw IS-M4x10	£0.79 £0.66
