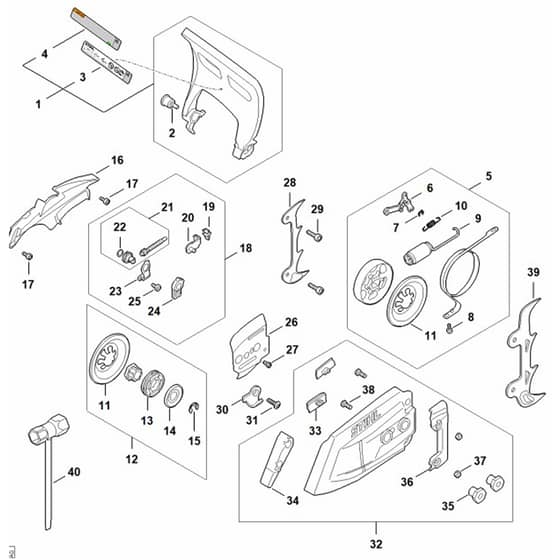

Stihl MSA300.1 C-O - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram

Name: Stihl MSA300.1 C-O - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram
SKU: msa300_1_c_o_hand_guard_chain_brake_chain_tensioner-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA300.1 C-O - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram

Description

Stihl MSA300.1 C-O - Hand Guard, Chain Brake, Chain Tensioner - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STMA02 790 9100 Available to backorder	Hand guard (Contains 2)	£29.04 £24.20
2	ST0000 790 6106 Available to backorder	Screw assy.	£4.52 £3.77
5	STMA02 007 1003 Available to backorder	Kit (Contains 6 - 11)	£31.02 £25.85
6	ST1128 160 5000 In stock	Lever	£9.58 £7.98
7	ST9460 624 0400 In stock	E-clip 4	£0.47 £0.39
8	ST9022 313 0650 Available to backorder	Spline screw IS-M4x10	£0.76 £0.63
9	STMA02 160 5500 Available to backorder	Tension spring	£3.74 £3.12
10	STMA02 708 0800 Available to backorder	Spring	£1.10 £0.92
11	STMA02 162 1000 Available to backorder	Cover washer	£2.54 £2.12
12	STMA02 007 2501 Available to backorder	Rim sprocket kit (Contains 11 + 13 - 15)	£35.74 £29.78
13	ST0000 642 1234 Available to backorder	Rim sprocket 0.325" 8T	£12.10 £10.08
14	ST0000 958 1022 In stock	Washer Ø 27 mm	£1.54 £1.28
15	ST9460 624 0801 In stock	E-clip 8x13	£0.34 £0.28
16	STMA02 021 1100 Available to backorder	Cover	£4.40 £3.67
18	STMA02 007 1002 In stock	Chain tensioner kit (Contains 19 - 25)	£8.92 £7.43
19	ST1125 664 1400 In stock	Thrust pad	£1.32 £1.10
20	ST1125 640 1900 In stock	Tensioner slide	£2.98 £2.48
21	ST1125 007 1021 In stock	Spur gear / chain adjusting screw kit (Contains 22)	£11.66 £9.72
22	ST9646 945 0490 In stock	O-ring 7x1.5	£0.44 £0.37
23	ST1122 664 2200 In stock	Cover plate	£1.10 £0.92
24	ST1122 664 4500 In stock	Support	£2.54 £2.12
25	ST9022 313 0633 In stock	Spline screw IS-M4x8	£0.76 £0.63
26	ST1141 664 1030 Available to backorder	Inner side plate	£3.86 £3.22
28	ST1142 664 0500 Available to backorder	Bumper spike	£6.28 £5.23
29	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.89 £0.74
30	ST1141 656 7700 In stock	Chain catcher	£2.08 £1.73
31	ST9061 373 0982 Available to backorder	Countersunk screw M5x18-10.9	£1.00 £0.83
32	STMA02 640 1701 Available to backorder	Chain sprocket cover (Contains 33 - 38)	£50.06 £41.72
33	ST1121 648 6610 In stock	Bumper strip	£1.88 £1.57
34	ST1141 656 1501 Available to backorder	Guard	£2.86 £2.38
35	ST0000 995 0803 In stock	Collar nut M8	£3.08 £2.57
36	STMA02 660 2700 Available to backorder	Limit stop	£5.38 £4.48
37	ST9214 320 0700 In stock	Lock nut M5	£0.44 £0.37
38	ST9008 345 0960 Available to backorder	Hexagon head screw M5x12	£0.83 £0.69
39	ST1141 664 0501 Available to backorder	Bumper spike	£6.94 £5.78
40	ST1142 890 3400 Available to backorder	Combination wrench	£7.82 £6.52
