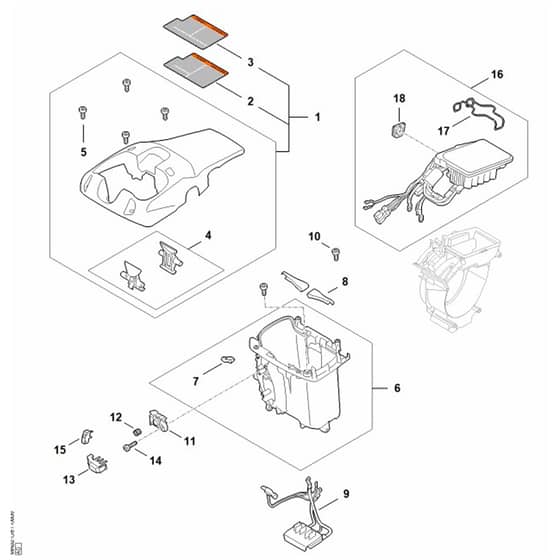

Stihl MSA300.1 - Battery Compartment, Electronic Module - Parts Diagram

Name: Stihl MSA300.1 - Battery Compartment, Electronic Module - Parts Diagram
SKU: msa300_1_battery_compartment_electronic_module-group
Price: 0.69 GBP
Availability: InStock

Part No. msa300_1_battery_compartment_electronic_module-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA300.1 - Battery Compartment, Electronic Module - Parts Diagram

Description

Stihl MSA300.1 - Battery Compartment, Electronic Module - Parts Diagram

	Part No.	Details
1	STMA02 080 1624 Available to backorder	Shroud (Contains 45781)	£14.11 £11.76
4	STMA02 430 9801 Available to backorder	Lockout lever	£5.69 £4.74
5	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
6	STMA02 400 9401 Available to backorder	Battery compartment (Contains 7)	£33.12 £27.60
7	STMA02 448 1200 Available to backorder	Lead retainer	£2.51 £2.09
8	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
9	STMA02 440 3011 Available to backorder	Wiring harness	£26.05 £21.71
10	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.83 £0.69
11	STMA02 432 1200 Available to backorder	Housing	£4.45 £3.71
12	ST0000 997 0629 Available to backorder	Compression spring	£1.14 £0.95
13	STMA02 435 0200 Available to backorder	Pushbutton switch	£2.05 £1.71
15	STMA02 430 0501 Available to backorder	Switch	£2.83 £2.36
17	STMA02 405 7600 Available to backorder	Spring	£1.72 £1.43
18	STMA02 432 9300 Available to backorder	Grommet	£2.28 £1.90
