Stihl MSA190.0 T - Hand Guard, Handle Housing, Chain Sprocket, Chain Sprocket Cover - Parts Diagram

Description

Stihl MSA190.0 T - Hand Guard, Handle Housing, Chain Sprocket, Chain Sprocket Cover - Parts Diagram

	Part No.	Details

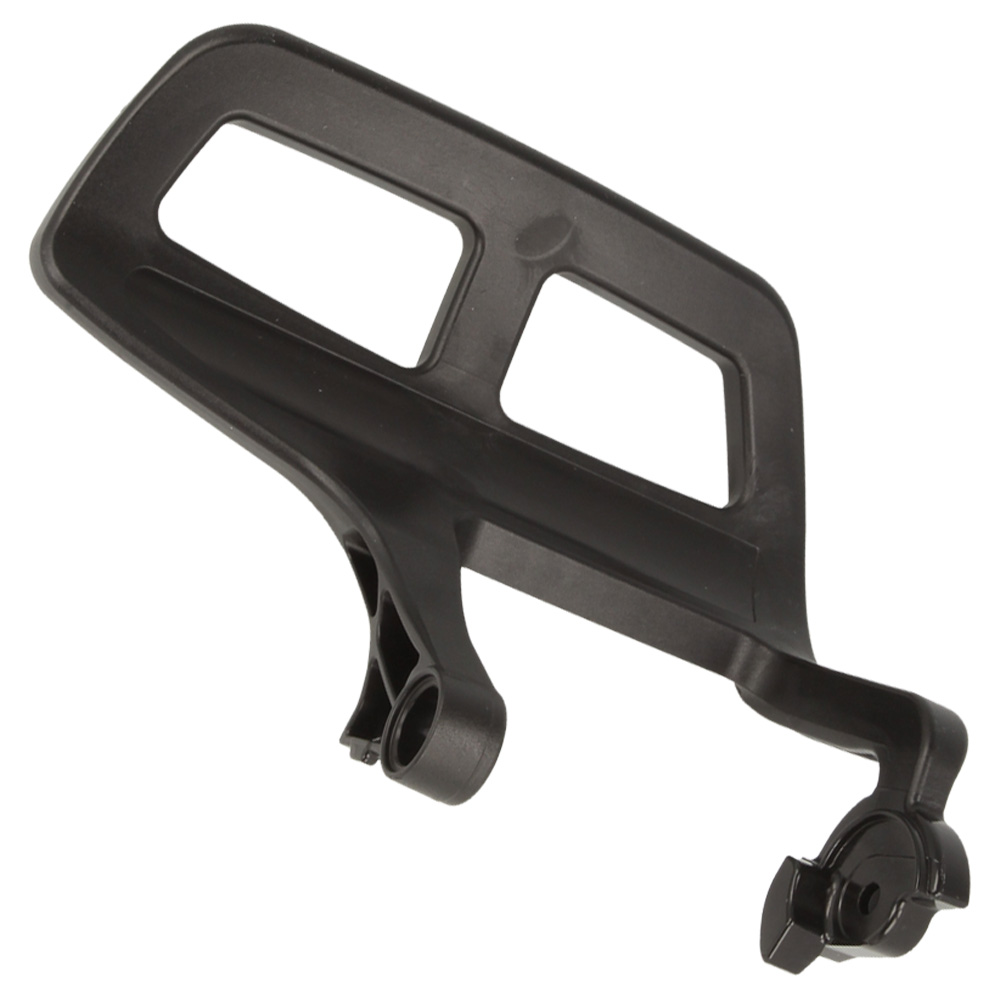

1	STMA05 792 4900 Available to backorder	Hand guard (Contains 4)	£27.66 £23.05
4	ST0000 790 6106 Available to backorder	Screw assy.	£4.68 £3.90
5	STMA05 007 1000 Available to backorder	Set of chain brake parts (Contains 6 - 13)	£20.38 £16.98
6	ST1148 162 7800 Available to backorder	Flat spring	£1.37 £1.14
7	ST1121 160 5000 Available to backorder	Lever	£7.12 £5.93
8	ST0000 958 0521 Available to backorder	Washer	£1.14 £0.95
9	ST1123 162 5800 In stock	Strap	£1.79 £1.49
10	STMA05 160 5400 Available to backorder	Brake band	£7.61 £6.34
11	STMA05 162 7900 Available to backorder	Tension spring	£2.63 £2.19
12	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
13	STMA05 162 6600 Available to backorder	Limit stop	£5.23 £4.36
14	STMA05 021 1100 Available to backorder	Cover	£4.88 £4.07
15	ST0000 951 1105 Available to backorder	Screw IS-P5x14-T27	£1.60 £1.33
16	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
17	ST1250 640 7101 In stock	Worm	£5.42 £4.52
18	STMA05 640 2000 Available to backorder	Chain sprocket 3/8"P 6 teeth (Contains 19 + 20)	£18.79 £15.66
18	STMA05 640 2001 Available to backorder	Chain sprocket 1/4"P 7 teeth (Contains 19 + 20)	£18.79 £15.66
19	ST0000 958 0506 In stock	Washer	£1.79 £1.49
20	ST9460 624 0600 In stock	E-clip 6	£0.37 £0.31

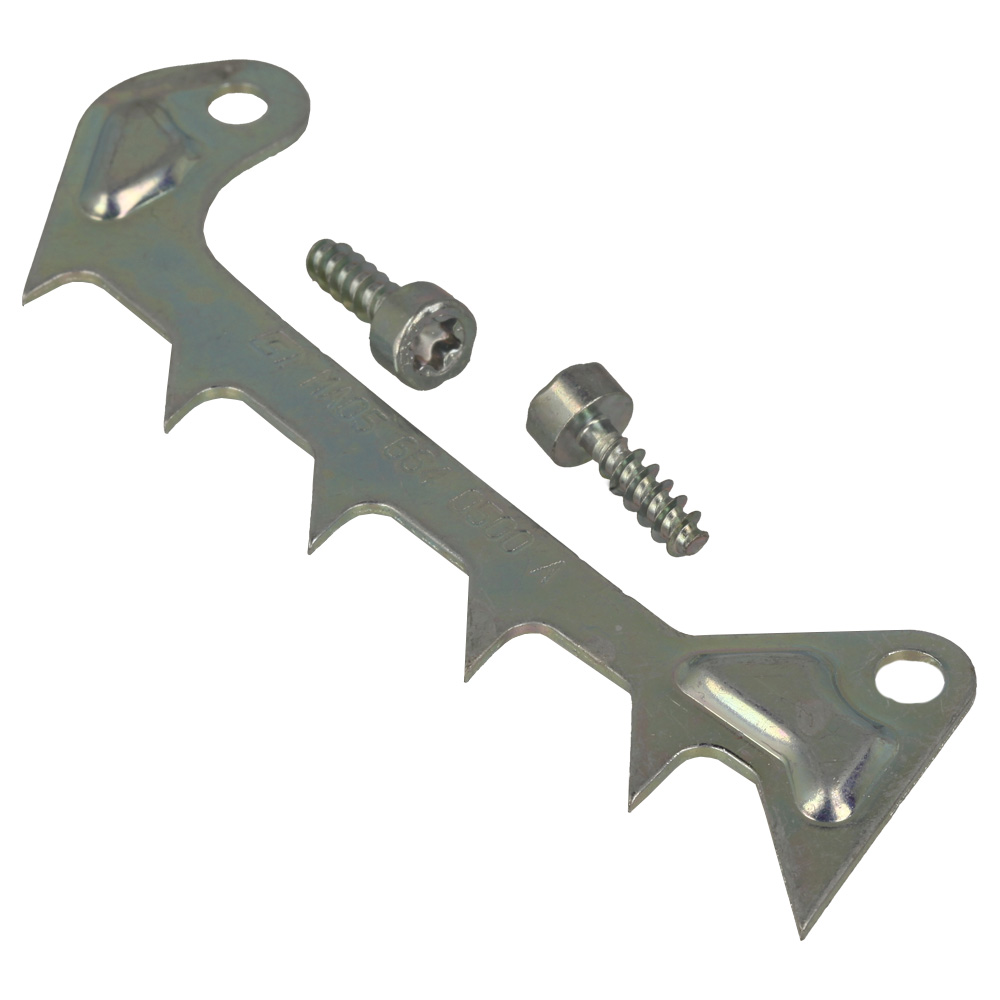

21	STMA05 660 0800 Available to backorder	Bumper spike (Contains 22)	£4.00 £3.33
23	STMA05 640 1701 Available to backorder	Chain sprocket cover (Contains 24)	£23.66 £19.72
24	ST1123 648 6600 Available to backorder	Bumper strip	£2.02 £1.68
25	ST1123 007 1000 In stock	Chain tensioner kit (Contains 26 - 30)	£13.33 £11.11
26	ST1123 007 1004 In stock	Spur gear / chain adjusting screw kit	£13.09 £10.91
27	ST1123 664 2200 In stock	Cover	£0.95 £0.79
28	ST1123 640 1900 In stock	Tensioner slide	£3.31 £2.76
29	ST1123 664 1400 In stock	Thrust pad	£1.43 £1.19
30	ST9075 478 3015 In stock	Pan head self-tapping screw IS-D4x15	£0.83 £0.69
31	STMA05 790 1000 Available to backorder	Handle housing (Contains 32 - 35)	£54.17 £45.14
32	STMA05 007 1002 Available to backorder	Trigger kit	£18.54 £15.45
33	STMA05 007 1001 Available to backorder	Spring kit	£15.02 £12.52
34	STMA05 430 7400 Available to backorder	Ergo Lever	£4.45 £3.71
35	STMA05 430 2202 Available to backorder	Wiring harness	£15.48 £12.90
36	ST9074 478 4420 In stock	Pan head self-tapping screw IS-P6x18	£0.95 £0.79

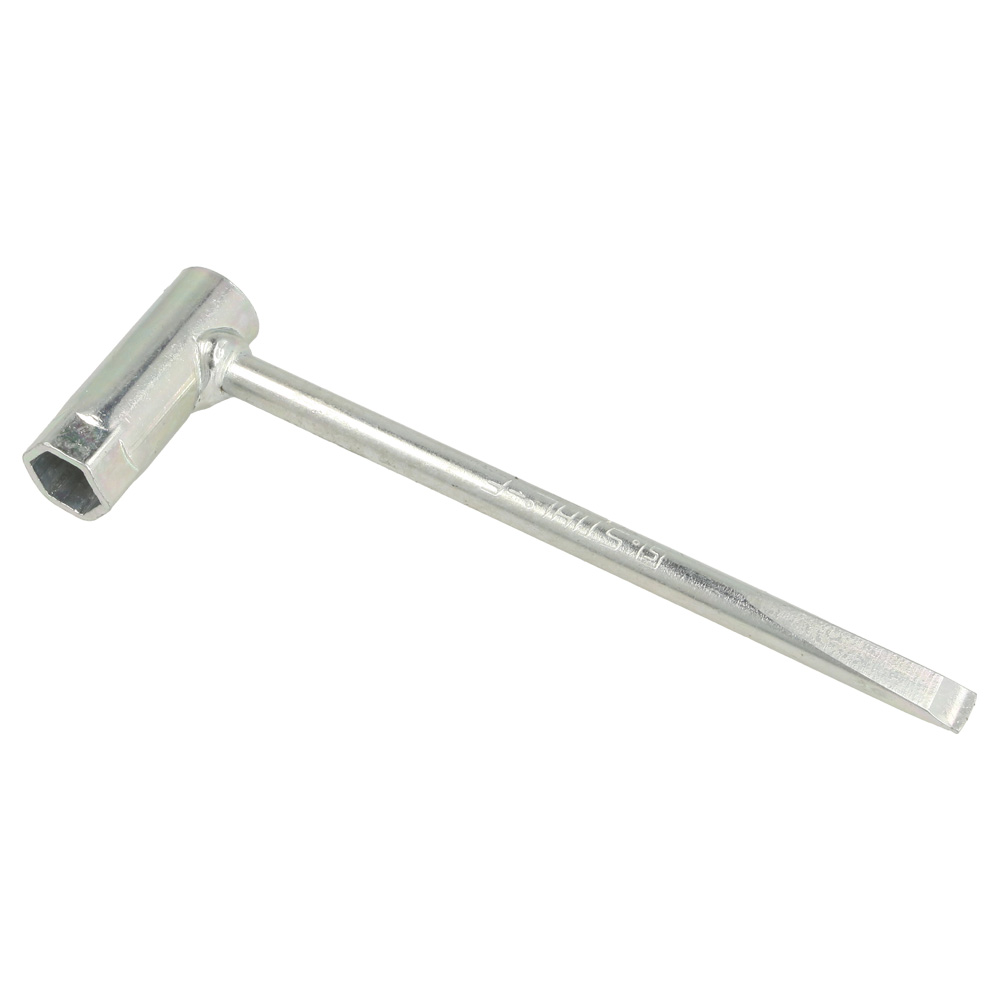

37	STGA04 890 3400 Available to backorder	Combination wrench	£8.09 £6.74
