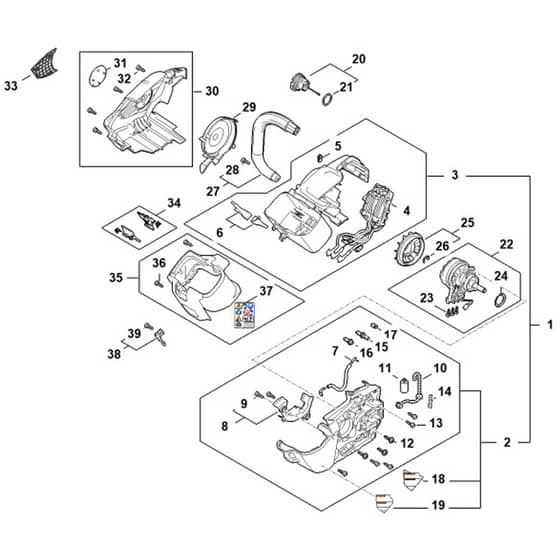

Stihl MSA190.0 T - Electric Motor, Electronic Module, Handle Housing - Parts Diagram

Name: Stihl MSA190.0 T - Electric Motor, Electronic Module, Handle Housing - Parts Diagram
SKU: msa190_0_t_electric_motor_handle_housing-group
Price: 0.3 GBP
Availability: InStock

Part No. msa190_0_t_electric_motor_handle_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA190.0 T - Electric Motor, Electronic Module, Handle Housing - Parts Diagram

Description

Stihl MSA190.0 T - Electric Motor, Electronic Module, Handle Housing - Parts Diagram

	Part No.	Details
1	STMA05 600 0804 Available to backorder	Motor housing (Contains 2 - 17)	£140.76 £117.30
2	STMA05 600 0805 Available to backorder	Motor housing (Contains 7 - 17)	£98.40 £82.00
4	STMA05 430 1400 Available to backorder	Electronic module	£183.72 £153.10
5	STMA05 405 0800 Available to backorder	Grommet	£3.08 £2.57
6	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
8	STMA05 141 6300 Available to backorder	Air baffle	£5.36 £4.47
9	ST9074 478 4130 Available to backorder	Screw IS P5x16	£0.91 £0.76
10	STMA05 647 4000 Available to backorder	Oil hose	£15.80 £13.17
11	STMA01 640 3801 Available to backorder	Pickup body	£5.00 £4.17
12	ST0000 951 1100 In stock	Screw	£1.66 £1.38
14	STMA05 640 3200 Available to backorder	Oil pump	£8.65 £7.21
15	ST1123 664 2400 In stock	Collar screw	£3.65 £3.04
16	ST1123 664 2402 Available to backorder	Collar screw	£3.52 £2.93
17	ST1128 640 9100 In stock	Valve	£4.72 £3.93
20	ST0000 350 0538 Available to backorder	Filler cap (Contains 21)	£9.46 £7.88
21	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
22	STMA05 600 0201 Available to backorder	Electric motor (Contains 23 + 24)	£198.00 £165.00
23	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
24	ST9460 624 0801 In stock	E-clip 8x13	£0.36 £0.30
25	STMA05 600 3200 Available to backorder	Fan wheel (Contains 26)	£5.81 £4.84
27	STMA05 791 1700 Available to backorder	Handlebar (Contains 28)	£21.95 £18.29
29	STMA05 602 0300 Available to backorder	Spiral housing	£6.49 £5.41
30	STMA05 080 1801 Available to backorder	Fan housing (Contains 31 + 32)	£24.68 £20.57
31	STMA05 967 1500 Available to backorder	Model plate MSA 190T	£4.68 £3.90
34	STMA05 430 9800 Available to backorder	Lockout lever	£7.40 £6.17
35	STMA05 080 1600 Available to backorder	Shroud (Contains 36 + 37)	£30.40 £25.33
37	STMA05 967 7200 Available to backorder	Warning pictogram	£2.15 £1.79
38	STMA05 790 5400 Available to backorder	Bracket (Contains 39)	£5.81 £4.84
39	ST9074 478 4435 In stock	Pan head self-tapping screw IS-P6x19	£0.92 £0.77
