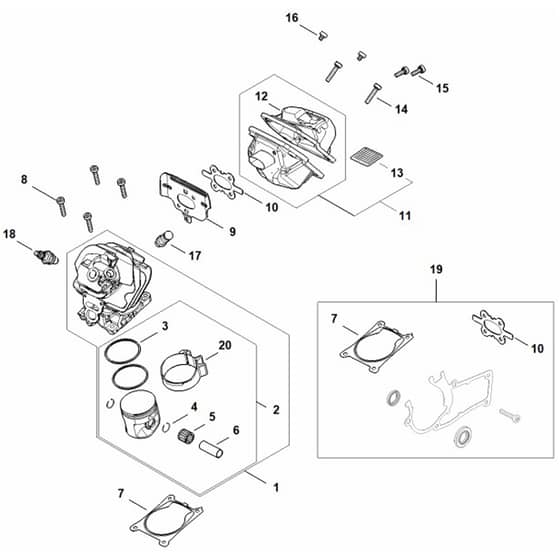

Stihl MS400.1 C-M - Cylinder, Muffler - Parts Diagram

Name: Stihl MS400.1 C-M - Cylinder, Muffler - Parts Diagram
SKU: ms400_1_c_m_cylinder_muffler-group
Price: 0.6 GBP
Availability: InStock

Part No. ms400_1_c_m_cylinder_muffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS400.1 C-M - Cylinder, Muffler - Parts Diagram

Description

Stihl MS400.1 C-M - Cylinder, Muffler - Parts Diagram

	Part No.	Details
1	STMB01 020 1200 Available to backorder	Cylinder with piston (Contains 2 - 6 + 20)	£306.24 £255.20
2	STMB01 030 2002 Available to backorder	Piston (Contains 3 - 6 + 20)	£128.76 £107.30
3	STMB01 034 3000 Available to backorder	Piston ring Ø 49x1.2 mm	£11.03 £9.19
4	ST9463 650 1200 In stock	Snap ring 12x1	£0.72 £0.60
5	ST9512 003 3146 In stock	Needle cage 12x16.2x15	£10.46 £8.72
6	ST1140 034 1501 Available to backorder	Piston pin	£7.74 £6.45

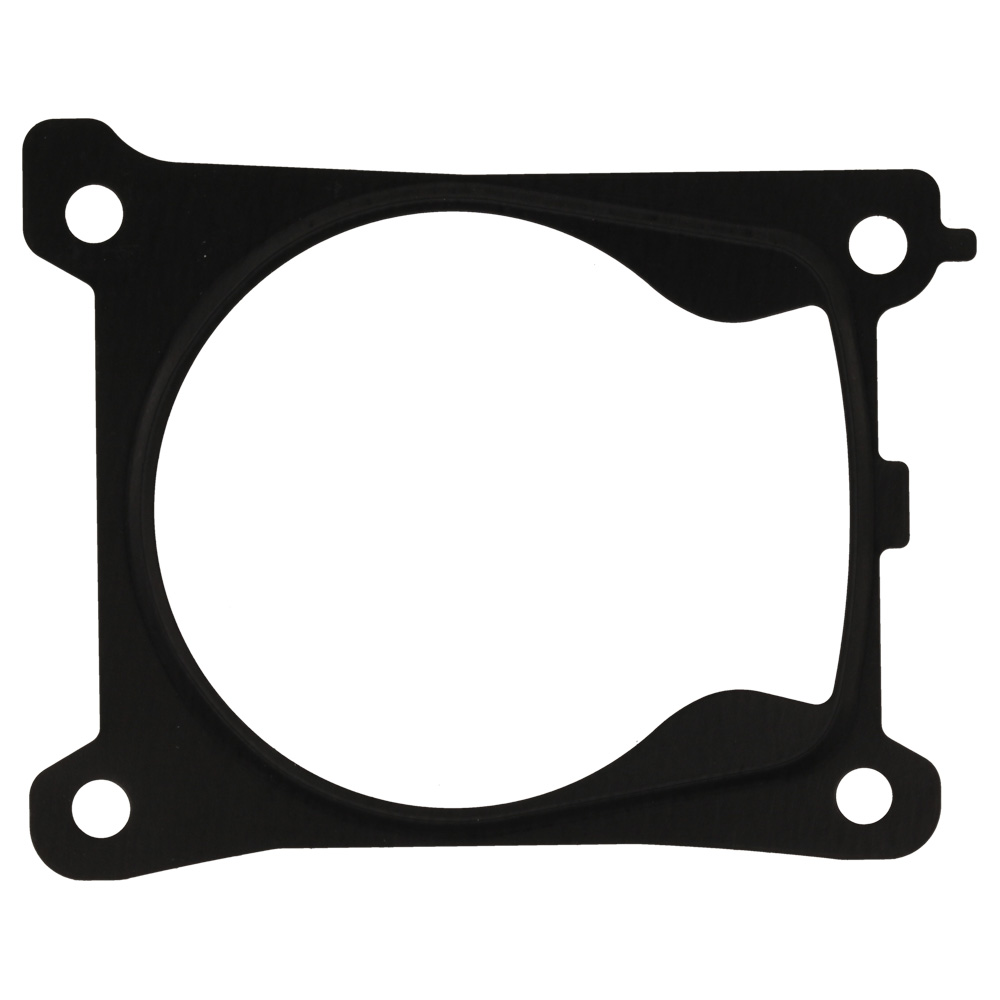

7	STMB01 029 2300 Available to backorder	Cylinder gasket	£3.19 £2.66
8	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
9	STMB01 141 3200 Available to backorder	Cooling plate	£3.19 £2.66
10	STMB01 149 0600 Available to backorder	Muffler gasket	£4.45 £3.71
11	STMB01 140 0600 Available to backorder	Muffler (Contains 12)	£72.60 £60.50
12	STMB01 140 0800 Available to backorder	Exhaust casing	£37.22 £31.02
14	ST9022 371 1053 In stock	Spline screw IS-M5x25-12.9	£1.08 £0.90
15	ST9022 341 0983 In stock	Spline screw IS-M5x16	£0.95 £0.79
16	ST9022 341 0911 In stock	Spline screw IS-M5x6	£0.83 £0.69
17	ST1142 020 9400 Available to backorder	Decompression valve	£31.51 £26.26
18	2134 In stock	Spark Plug	£2.80 £2.33
19	STMB01 007 1600 Available to backorder	Set of gaskets (Contains 45937)	£31.86 £26.55
20	STMB01 893 2600 Available to backorder	Clamping strap	£27.66 £23.05
