Stihl MS400.1 C-M - Crankcase, Crankshaft - Parts Diagram

Description

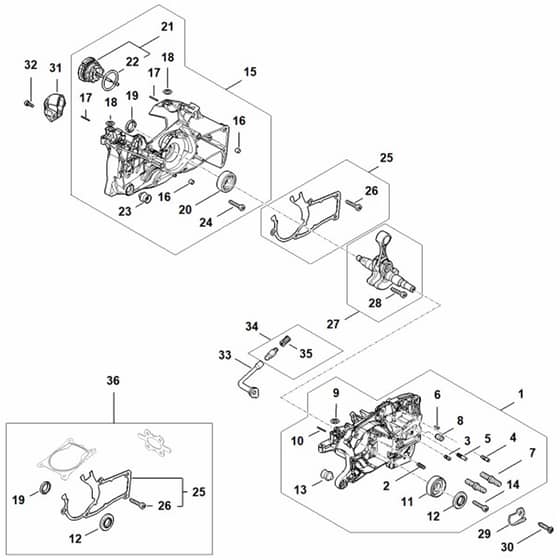

Stihl MS400.1 C-M - Crankcase, Crankshaft - Parts Diagram

	Part No.	Details
1	STMB01 020 2902 Available to backorder	Crankcase (Contains 2 - 14)	£188.16 £156.80
2	ST1120 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
3	ST1128 162 5200 In stock	Pin	Was £1.10 £0.92 Special Price £0.84 £0.70
4	ST1121 162 5200 In stock	Pin	Was £1.42 £1.18 Special Price £1.08 £0.90
5	ST1143 162 5200 Available to backorder	Pin	£1.82 £1.52
6	ST0000 974 1200 In stock	Notched pin 2.6x8	£0.68 £0.57
7	ST0000 664 2406 In stock	Collar screw M8	£3.65 £3.04
8	ST1128 640 9100 In stock	Valve	£4.72 £3.93
9	ST0000 963 0902 Available to backorder	Bushing	£0.46 £0.38
10	ST9371 470 1058 Available to backorder	Cylindrical pin 18x19	£0.46 £0.38
11	ST9523 003 4278 Available to backorder	Grooved ball bearing 5x35x13	£17.52 £14.60
12	ST9640 003 1600 In stock	Oil seal 15x29.6x4	£6.96 £5.80
13	ST1141 791 5902 Available to backorder	Stop buffer	£4.20 £3.50
14	ST9022 500 1051 In stock	Spline screw IS-M5x27	£1.08 £0.90
15	STMB01 020 2601 Available to backorder	Crankcase fan side (Contains 16 - 24)	£184.80 £154.00
16	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99
19	ST9640 003 1560 In stock	Oil seal 15x22x4	£7.79 £6.49
20	ST9503 003 0354 Available to backorder	Grooved ball bearing DIN625-6202.	£15.71 £13.09
21	ST0000 350 0534 In stock	Filler cap (Contains 22)	£11.32 £9.43
22	ST9645 948 7734 In stock	O-ring 25x3.5	£0.80 £0.67
25	STMB01 020 9700 Available to backorder	Gasket (Contains 26)	£8.20 £6.83
27	STMB01 030 0402 Available to backorder	Crankshaft (Contains 28)	£289.44 £241.20
29	STMB01 656 7700 Available to backorder	Chain catcher	£2.83 £2.36
30	ST9074 477 4438 Available to backorder	Pan head self-tapping screw IS-P6x30	£1.26 £1.05
31	STMB01 141 7500 Available to backorder	Pre-separator	£4.00 £3.33
32	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
33	ST1122 647 9400 In stock	Hose	£5.89 £4.91
34	ST1117 640 3800 In stock	Pickup body (Contains 35)	£5.18 £4.32
35	ST1117 647 6801 Available to backorder	Strainer	£2.96 £2.47
36	STMB01 007 1600 Available to backorder	Set of gaskets (Contains 12 + 19 + 25 + 26)	£31.86 £26.55
