Stihl MS400.1 C-M - Air Baffle, Carburettor Bracket, Shroud - Parts Diagram

Name: Stihl MS400.1 C-M - Air Baffle, Carburettor Bracket, Shroud - Parts Diagram
SKU: ms400_1_c_m_air_baffle_carburettor_bracket_shroud-group
Price: 0.4 GBP
Availability: InStock

Part No. ms400_1_c_m_air_baffle_carburettor_bracket_shroud-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS400.1 C-M - Air Baffle, Carburettor Bracket, Shroud - Parts Diagram

Description

Stihl MS400.1 C-M - Air Baffle, Carburettor Bracket, Shroud - Parts Diagram

	Part No.	Details
3	ST1140 122 9901 Available to backorder	Buffer	£1.94 £1.62
4	STMB01 442 1600 Available to backorder	Contact spring	£1.60 £1.33
5	STMB01 431 7000 Available to backorder	Contact plate	£1.60 £1.33
6	ST9074 477 2995 In stock	Pan head self-tapping screw IS-P4x12	£0.83 £0.69
7	ST4224 122 3900 In stock	Elbow connector	£3.91 £3.26
11	ST1143 084 4100 Available to backorder	Shutter	£2.83 £2.36
12	ST9022 313 0680 In stock	Screw	£0.83 £0.69
13	ST1142 141 8600 Available to backorder	Fuel Hose	£3.64 £3.03
14	STMB01 140 2500 Available to backorder	Manifold	£51.79 £43.16
15	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
17	ST1128 121 8600 Available to backorder	Washer	£1.72 £1.43

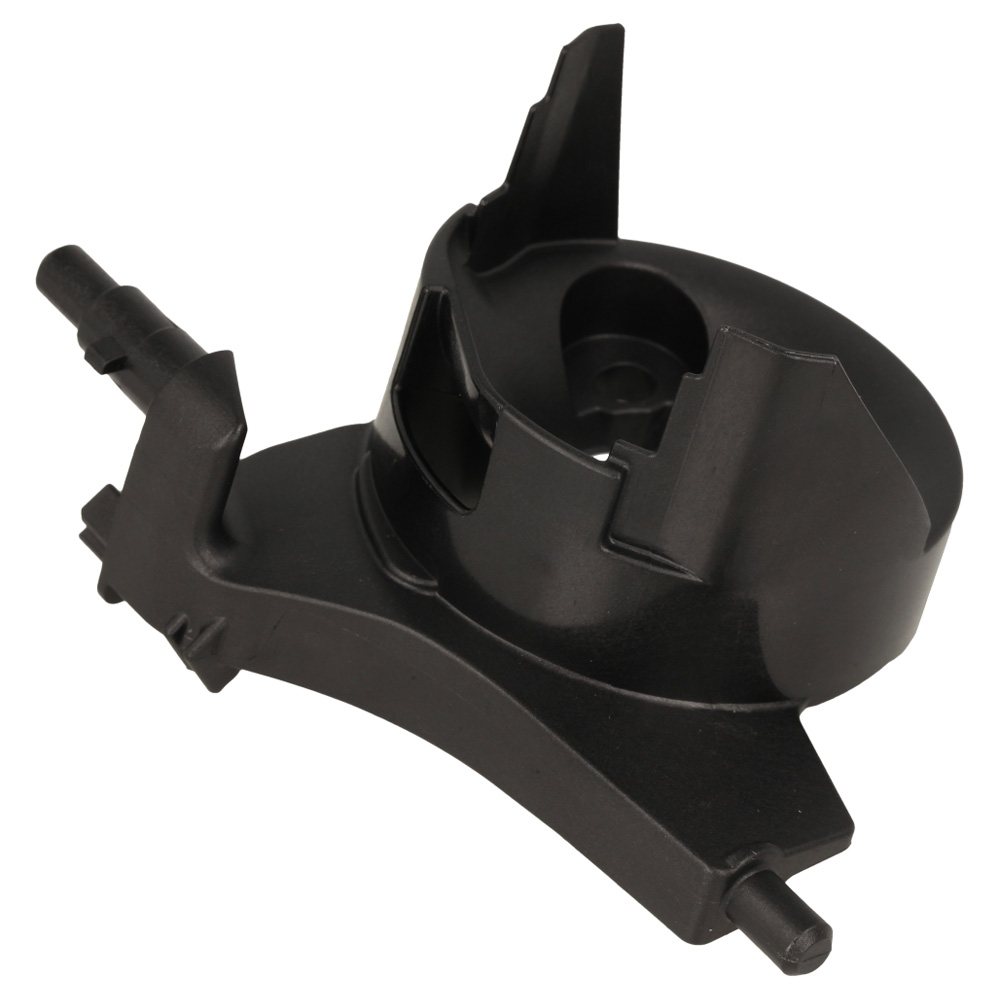

19	STMB01 141 0900 Available to backorder	Air filter base	£7.18 £5.98
20	STMB01 121 6900 Available to backorder	Intake baffle	£10.01 £8.34
21	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
22	ST1142 140 4402 In stock	Air filter HD2	£13.33 £11.11
23	STMB01 080 1600 Available to backorder	Shroud (Contains 25 + 26)	£37.66 £31.38
24	ST1140 140 9200 In stock	Twist lock	£9.67 £8.06
25	ST1121 084 7100 Available to backorder	Cap	£1.94 £1.62
27	STMB01 120 0600 Available to backorder	Carburetor MB01/00	£221.76 £184.80
