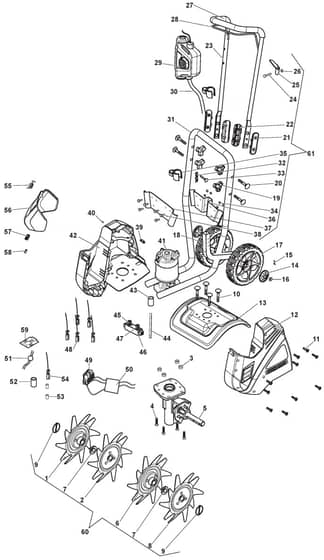

MR 48 Li - 2015-2019 - 276260003/M15 - Mountfield Tiller Main Assembly Diagram

Description

Mountfield MR 48 Li Parts Diagram

Model Year - 2015-2019

Model Type - TI 48 Li

Art.N - 276260003/M15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118803232/0 Available to backorder	Blade Ass.Y	£21.96 £18.30
2	MO118803234/0 Available to backorder	Blade Ass.Y	£22.08 £18.40
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
8	MO118803241/0 Available to backorder	Blade Ass.Y	£22.08 £18.40
9	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
10	MO112819110/0 In stock	Screw To 31-8-2015	£1.82 £1.52
11	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
18	MO118850040/0 Available to backorder	Clamp From 01-9-2015	£12.89 £10.74
20	MO112691700/0 In stock	Screw To 31-8-2015	£1.82 £1.52
20	MO118820489/0 Available to backorder	Screw From 01-9-2015	£3.47 £2.89
26	MO112154330/0 In stock	Nut	£1.55 £1.29
32	MO124487999/0 Available to backorder	Spring Pin	£1.82 £1.52
33	MO118803263/0 Available to backorder	Pin	£1.55 £1.29
34	MO112154510/0 In stock	Nut	£1.55 £1.29
38	MO112790500/0 Available to backorder	Screw	£1.97 £1.64
41	MO118803367/0 Available to backorder	Engine	£57.71 £48.09
42	MO118803805/0 Available to backorder	Right Housing	£18.31 £15.26
44	MO118803265/0 Available to backorder	Flexible Shaft	£3.67 £3.06
45	MO118850044/0 Available to backorder	Spring From 01-9-2015	£1.55 £1.29
49	MO118803304/0 Available to backorder	Insert Block	£7.25 £6.04
50	MO118803370/0 Available to backorder	Pcb Components To 31-8-2015	£41.89 £34.91
59	MO118850047/0 Available to backorder	Electronic Card	£45.04 £37.53
60	MO118804999/0 Available to backorder	Blade Assy	£115.82 £96.52
61	MO118805000/0 Available to backorder	Handle Fix Components Kit	£47.87 £39.89
