MR 17 40 H - 2009 - 2T5562443/IM9 - Mountfield Ride On Mower Body Diagram

Name: MR 17 40 H - 2009 - 2T5562443/IM9 - Mountfield Ride On Mower Body Diagram
SKU: mr_17_40_h_2t5562443_im9_body-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MR 17 40 H - 2009 - 2T5562443/IM9 - Mountfield Ride On Mower Body Diagram

Description

Mountfield MR 17 40 H Parts Diagram

Product Name - MR 17 40 H

Model Year - 2009

Model Type - TCU 102 Hydro

Art.N - 2T5562443/IM9

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076956/1 Available to backorder	Engine Hood. Red & Black From 01-9-2013	£316.75 £263.96

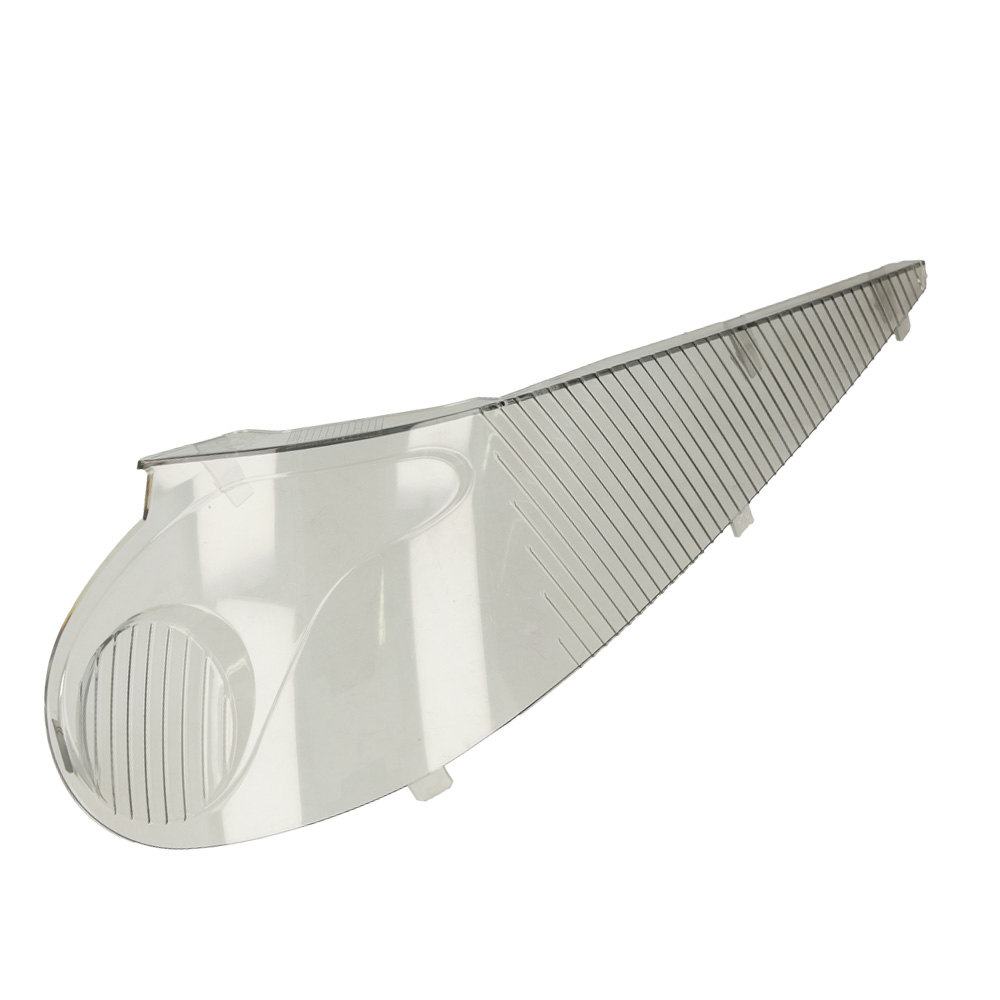

2	MO325410891/0 Available to backorder	Right Grill	£8.87 £7.39
3	MO325410892/0 Available to backorder	Left Grill	£8.87 £7.39
4	MO325076901/0 Available to backorder	Upper Engine Hood Red	£66.16 £55.13
5	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
7	MO112293201/0 In stock	Nut	£1.69 £1.41
11	MO382785022/10 Available to backorder	Right Dashboard Support From 01-9-2011	£40.63 £33.86
11	MO382785022/8 Available to backorder	Right Dashboard Support To 31-8-2011	£29.56 £24.63
12	MO382785021/7 Available to backorder	Left Dashboard Support To 31-8-2011	£29.56 £24.63
12	MO382785021/9 Available to backorder	Left Dashboard Support From 01-9-2011	£38.20 £31.83
13	MO382785137/1 Available to backorder	Central Dashboard Support From 01-9-2003	£13.43 £11.19
15	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
16	MO325120278/0 Available to backorder	Black Dashboard To 31-8-2013	£43.64 £36.37
17	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
18	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
21	MO125600009/0 Available to backorder	Rear Card Protection	£15.76 £13.13
22	MO125600051/0 Available to backorder	Protection	£10.14 £8.45
29	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
34	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
35	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
54	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
61	MO325110239/1 Available to backorder	Red Central Cover (Hydro) From 01-9-2003	£30.83 £25.69
62	MO125580020/2 In stock	Stake From 01-9-2010	£8.29 £6.91
63	MO125110270/0 Available to backorder	Right Footboard Cover	£54.08 £45.07
64	MO382110314/0 Available to backorder	Left Footboard Cover	£54.08 £45.07
71	MO325109701/1 Available to backorder	Red Wheels Cover From 01-9-2003	£154.86 £129.05
72	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
81	MO382110200/1 Available to backorder	Red Grass-Catcher Cover From 01-9-2003	£161.89 £134.91
82	MO325547025/1 Available to backorder	Injection Plaque From 01-9-2003	£1.82 £1.52
83	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
84	MO112729601/1 Available to backorder	Screw From 01-9-2003	£1.48 £1.23
85	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
86	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
101	MO382869025/0 Available to backorder	Muffler Protection	£125.29 £104.41
102	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
103	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
105	MO325547091/1 Available to backorder	Left Plate From 01-9-2012	£4.08 £3.40
106	MO112731580/0 Available to backorder	Self-Tap Screw Te 4.8 X 9.5 C15 Bz	£1.55 £1.29
