MPV 320 W - 2017-2019 - 2F2020521/S17 - Stiga Front Mower Hydrostatic Unit Diagram

Name: MPV 320 W - 2017-2019 - 2F2020521/S17 - Stiga Front Mower Hydrostatic Unit Diagram
SKU: mpv_320_w_2f2020521_s17_hydrostatic_unit-group
Price: 1.16 GBP
Availability: InStock

Part No. mpv_320_w_2f2020521_s17_hydrostatic_unit-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MPV 320 W - 2017-2019 - 2F2020521/S17 - Stiga Front Mower Hydrostatic Unit Diagram

Description

Stiga MPV 320 W Parts Diagram

Product Name - MPV 320 W

Model Year - 2017-2019

Model Type - FMC 112

Art.N - 2F2020521/S17

Engine Model - Vanguard 16

	Part No.	Details
4	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
5	MO112293200/0 In stock	Nut	£1.55 £1.29
9	MO118830510/0 Available to backorder	Cable Drive Eng.	£183.01 £152.51
10	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
11	MO9924-0830-16 Available to backorder	Screw	£1.55 £1.29
14	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
15	MO118830388/0 Available to backorder	Absorber	£122.46 £102.05
16	MO118830498/0 Available to backorder	Support	£32.38 £26.98
19	MO118830414/0 Available to backorder	Transmission Unit (Hydrogear G700)	£1,529.28 £1,274.40
24	MO112793102/0 In stock	Screw	£1.55 £1.29
25	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO118830431/0 Available to backorder	Shaft	£61.94 £51.62
28	MO118830487/0 Available to backorder	Cable. Thread Parking Brake	£31.60 £26.33
32	MO118830415/0 Available to backorder	Wheel Hub	£117.54 £97.95
33	MO118870066/0 Available to backorder	Lining	£9.42 £7.85
37	MO118830389/0 Available to backorder	Oil Filter	£77.44 £64.53
40	MO118830458/0 Available to backorder	Support	£47.87 £39.89
41	MO112154510/0 In stock	Nut	£1.55 £1.29
42	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
48	MO118830365/0 Available to backorder	Bushing	£3.10 £2.58
52	MO118830457/0 Available to backorder	Arm	£20.83 £17.36
53	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
54	MO112156603/0 Available to backorder	Nut	£1.63 £1.36

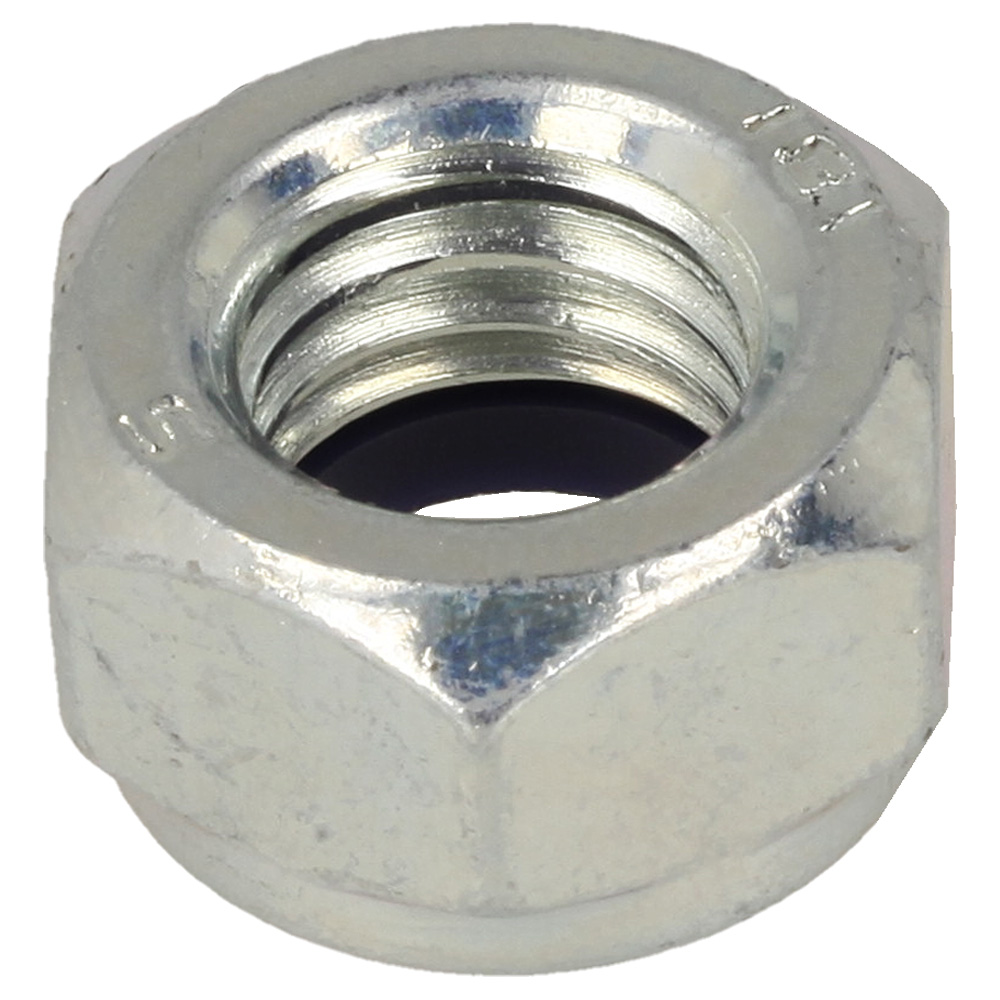

55	MO112156602/0 In stock	Nut	£1.39 £1.16
56	MO112794400/0 Available to backorder	Screw	£6.90 £5.75
57	MO112521360/0 In stock	Washer	£1.55 £1.29
62	MO118830538/0 Available to backorder	Fan Kit	£204.13 £170.11
66	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
70	MO118830354/0 Available to backorder	Tyre	£53.84 £44.87
74	MO119216047/0 In stock	Bearing	£15.78 £13.15
76	MO112609260/0 In stock	Seeger	£1.84 £1.53
82	MO118830683/0 Available to backorder	Front Wheel	£172.72 £143.93
85	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
