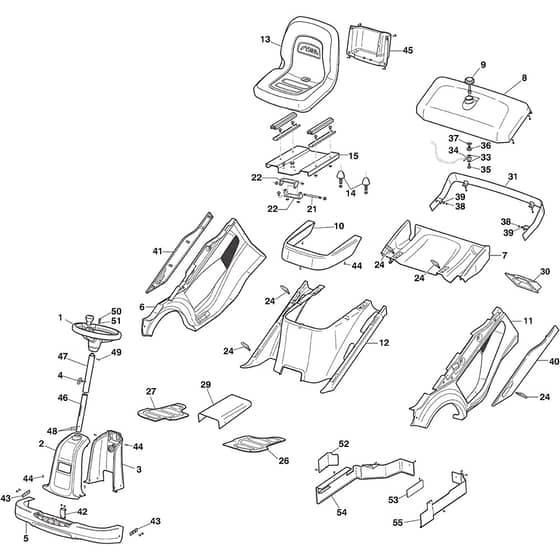

MPV 320 W - 2017-2019 - 2F2020521/S17 - Stiga Front Mower Body Diagram

Name: MPV 320 W - 2017-2019 - 2F2020521/S17 - Stiga Front Mower Body Diagram
SKU: mpv_320_w_2f2020521_s17_body-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MPV 320 W - 2017-2019 - 2F2020521/S17 - Stiga Front Mower Body Diagram

Description

Stiga MPV 320 W Parts Diagram

Product Name - MPV 320 W

Model Year - 2017-2019

Model Type - FMC 112

Art.N - 2F2020521/S17

Engine Model - Vanguard 16

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337961200/0 Available to backorder	Steering Wheel	£344.89 £287.41
2	MO337110344/0 Available to backorder	Steering Column Cover	£52.88 £44.07
4	MO337394201/0 Available to backorder	Wing Nut	£13.24 £11.03
7	MO337110348/0 Available to backorder	Housing	£92.56 £77.13
8	MO337735113/0 Available to backorder	Fuel Tank	£204.12 £170.10
9	MO118830360/0 Available to backorder	Fuel Cap	£49.26 £41.05
10	MO337110347/0 Available to backorder	Central Cover	£58.45 £48.71
12	MO337110346/0 Available to backorder	Housing	£146.14 £121.78
13	MO137722603/2 Available to backorder	Seat	£457.51 £381.26
14	MO118830364/0 Available to backorder	Grommet	£10.00 £8.33
24	MO118830359/0 Available to backorder	Handle	£12.53 £10.44
26	MO337110357/0 Available to backorder	Left Footboard Cover	£31.60 £26.33
27	MO337110356/0 Available to backorder	Right Footboard Cover	£30.97 £25.81
28	MO118830357/0 Available to backorder	Plug	£1.69 £1.41
30	MO118830493/0 Available to backorder	Cover	£33.79 £28.16
34	MO118830387/0 Available to backorder	Boot-Eye Bolt	£5.35 £4.46
38	MO112788800/0 Available to backorder	Screw	£1.40 £1.17
39	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
44	MO112728697/0 In stock	Screw	£1.55 £1.29
45	MO337592350/0 Available to backorder	Tray	£27.02 £22.52

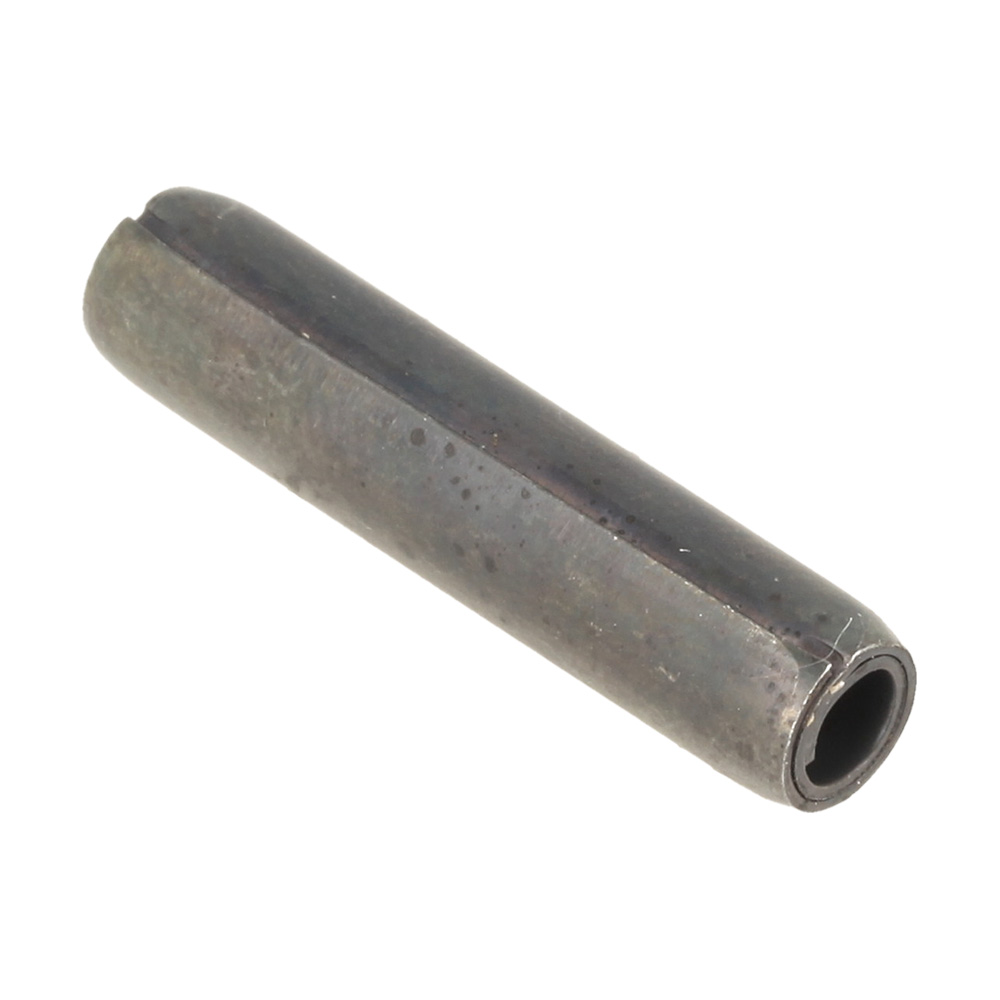

49	MO9595-0256-01 Available to backorder	Locating Pin	£2.12 £1.77
50	MO112793102/0 In stock	Screw	£1.55 £1.29
51	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
54	MO337060029/0 Available to backorder	Right Protection	£78.84 £65.70

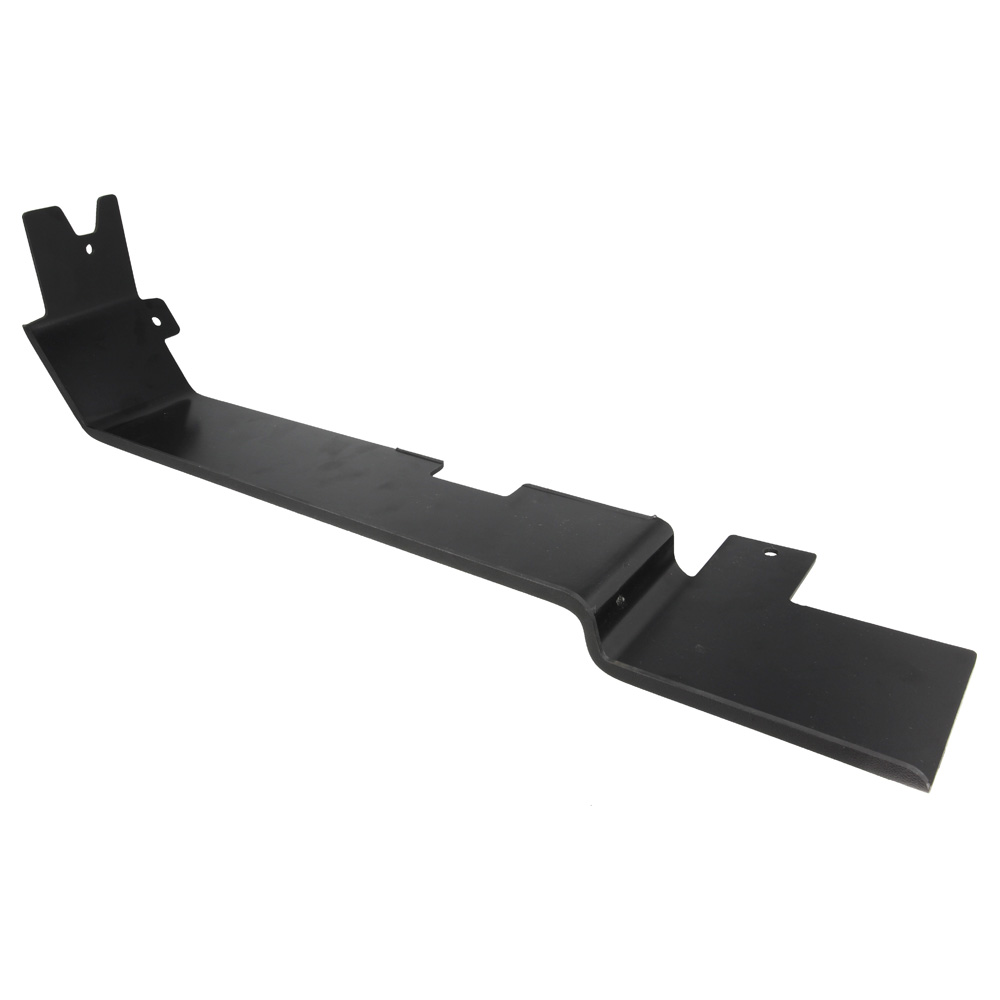

55	MO337060030/0 In stock	L.H Protection Guard [Black]	Was £81.26 £67.72 Special Price £53.02 £44.18
