MP1 504 SQ-B - 2015-2022 - 294506823/15 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

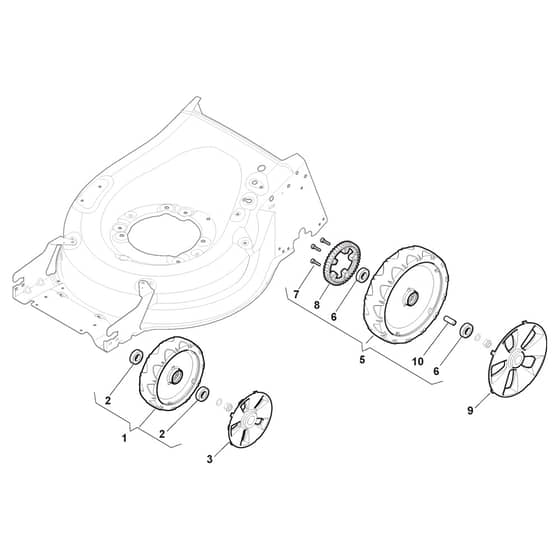

Castel Garden MP1 504 SQ-B Parts Diagram

Product Name - MP1 504 SQ - B

Model Year - 2015-2022

Model Type - MP1 504 SQ

Art.N - 294506823/15

Engine Model -

	Part No.	Details
1	MO381007455/1 Available to backorder	Wheel - Short Hub	£17.17 £14.31
3	MO322110636/0 In stock	Hub Cap Grey	£2.53 £2.11
5	MO381007467/1 Available to backorder	Wheel	£29.56 £24.63
6	MO119216035/0 In stock	Bearing	£3.52 £2.93
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO322120117/0 In stock	Wheels Crown	£4.93 £4.11
9	MO322110637/0 Available to backorder	Hub Cap Grey	£3.25 £2.71
10	MO122170848/0 Available to backorder	Wheel Bearing Spacer L.32	£1.97 £1.64
