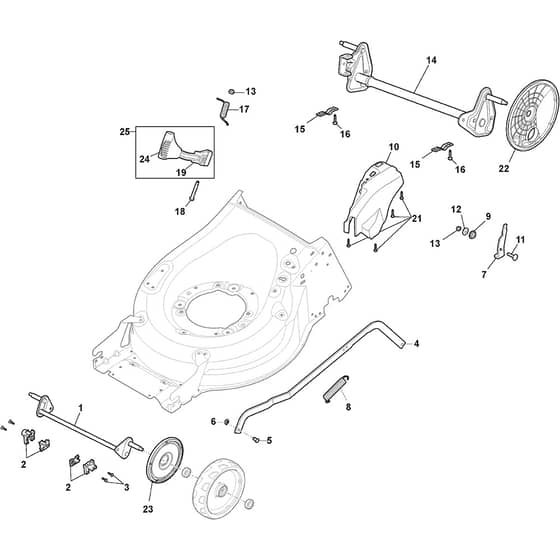

MP1 500 Li - 2016-2019 - 294501003/16 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

Castel Garden MP1 500 Li Parts Diagram

Product Name - MP1 500 Li

Model Year - 2016-2019

Model Type - MP1 500 Li 80

Art.N - 294501003/16

Engine Model -

	Part No.	Details
1	MO381302913/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH080823	£30.98 £25.82
1	MO381302913/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH080824	£29.57 £24.64
2	MO322785305/1 In stock	Support From 01-9-2016	£2.69 £2.24
4	MO322869695/1 Available to backorder	Wheels Control Rod From S.N 20BA2WBH090897	£33.52 £27.93
5	MO122519820/0 Available to backorder	Pin	£2.22 £1.85
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO322778475/0 Available to backorder	Bracket	£2.82 £2.35
8	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
9	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
10	MO322055329/0 Available to backorder	Cover	£12.94 £10.78
11	MO112815270/0 Available to backorder	Screw	£1.63 £1.36
12	MO112523040/0 In stock	Washer	£1.55 £1.29
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO381302897/0 Available to backorder	Rear Wheel Axle To S.N 20EA2WBH075267	£30.98 £25.82
14	MO381302897/1 Available to backorder	Rear Wheel Axle From S.N 20EA2WBH075268	£30.98 £25.82
15	MO322545152/0 In stock	Plate	£1.55 £1.29
16	MO112728697/0 In stock	Screw	£1.55 £1.29
17	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
18	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
19	MO322322855/0 Available to backorder	Wheels Adjusting Lever To S.N 20BA2WBH068104	£10.85 £9.04
19	MO322322915/0 Available to backorder	Wheels Adjusting Lever From S.N 20BA2WBH068105	£10.85 £9.04
21	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
22	MO322600205/1 Available to backorder	Protection. Wheel	£3.79 £3.16
23	MO322600247/0 Available to backorder	Protection. Wheel	£4.50 £3.75
24	MO322394506/0 Available to backorder	Knob Standard Black	£1.70 £1.42
25	MO381003357/0 Available to backorder	Wheels Rear Adj. Lever To S.N 20BA2WBH076280	£13.50 £11.25
