MOLEMASTER 46PD - 2015 - 299274648/M14 - Mountfield Rotary Mower Transmission Diagram

Description

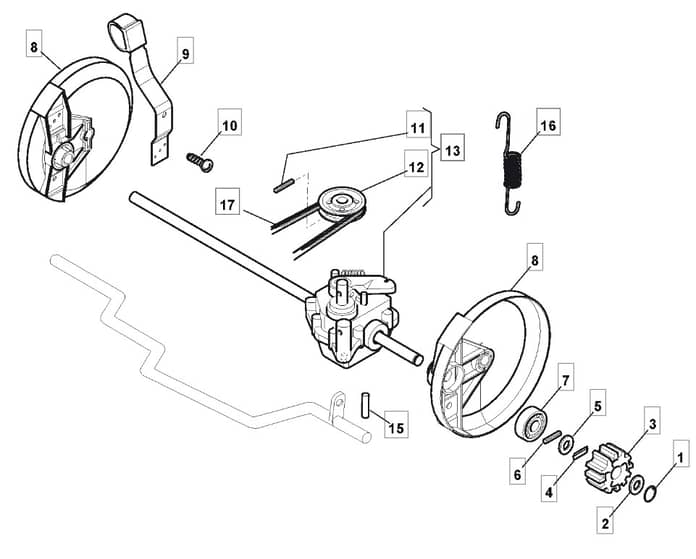

Mountfield MOLEMASTER 46PD Parts Diagram

Product Name - MOLEMASTER 46PD

Model Year - 2015

Model Type - ESL 464 TR

Art.N - 299274648/M14

Engine Model - RM45

	Part No.	Details
1	MO112608520/0 In stock	Seeger	£2.82 £2.35
3	MO122570125/0 In stock	Pinion	£14.64 £12.20
4	MO122076645/0 In stock	Key	£1.70 £1.42
5	MO322160520/0 In stock	Dust Cover Disc	£1.55 £1.29
6	MO112622620/0 Available to backorder	Pin	£1.46 £1.22
7	MO122122202/0 In stock	Bearing	£1.84 £1.53
8	MO322600106/1 Available to backorder	Protection. Wheel	£6.77 £5.64
9	MO381003303/0 Available to backorder	Lever. Height Adjustment	£17.46 £14.55
10	MO112728689/0 In stock	Screw	£1.39 £1.16
11	MO112713801/0 Available to backorder	Grub Screw	£2.24 £1.87
12	MO122601909/0 In stock	Pulley	£5.65 £4.71
13	MO181003093/1 Available to backorder	Gear Box From 01-9-2008	£102.77 £85.64
15	MO122753001/0 Available to backorder	Pin	£1.63 £1.36
16	MO122450432/0 Available to backorder	Spring To 31-8-2007	£1.97 £1.64
16	MO122450438/0 Available to backorder	Spring From 01-9-2007	£3.67 £3.06
17	MO135063170/0 In stock	Trapezoidal Belt From 01-9-2006 To 31-8-2007	£8.42 £7.02
17	MO135063750/0 In stock	Belt From 01-9-2007	£9.10 £7.58
