MM 48 Li - 2015-2019 - 277340003/M15 - Mountfield Brushcutter Pole Pruner Diagram

Description

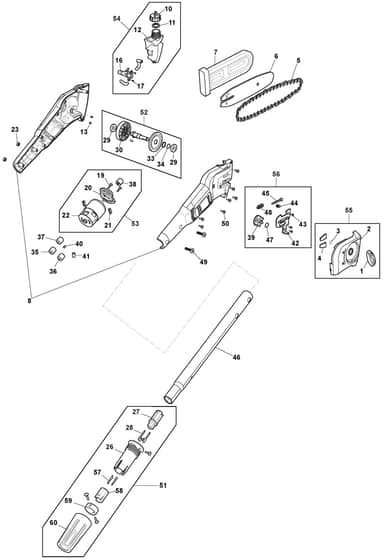

Mountfield MM 48 Li Parts Diagram

Model Year - 2015-2019

Model Type - MT 48 V

Art.N - 277340003/M15

	Part No.	Details
1	MO118803816/0 Available to backorder	Knob. Grey	£3.92 £3.27
2	MO118803451/0 Available to backorder	Side Cover	£7.31 £6.09
3	MO118804147/0 Available to backorder	Washer	£1.20 £1.00
4	MO118804155/0 Available to backorder	Steel Block	£1.39 £1.16
5	7048 In stock	Chain 8"-3.8"-0.050"-33E Stiga Pack	£7.15 £5.96
7	MO323085000/0 Available to backorder	Chain Cover	£25.62 £21.35

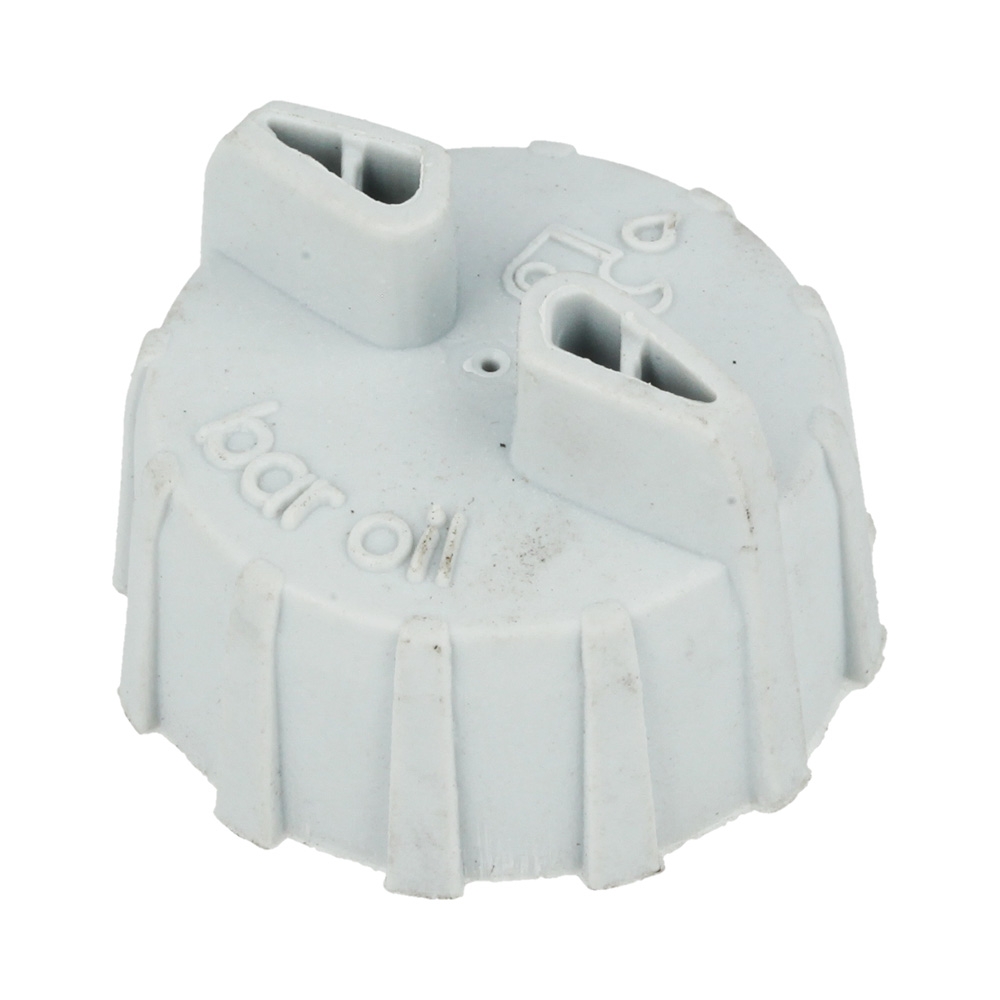

10	MO118803802/0 Available to backorder	Oil Tank Cap	£1.46 £1.22
17	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
19	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
21	MO118804152/0 Available to backorder	Shock Absorber	£1.33 £1.11
23	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO118803431/0 Available to backorder	Clamp	£6.64 £5.53
27	MO118803309/0 Available to backorder	Connector	£17.04 £14.20
29	MO118803246/0 Available to backorder	Bearing	£2.24 £1.87
30	MO118804151/0 Available to backorder	Cam	£4.50 £3.75
33	MO118804146/0 Available to backorder	Waveform Mat	£1.55 £1.29
34	MO112608600/0 In stock	Seeger	£1.55 £1.29
35	MO118804158/0 Available to backorder	Circular	£3.66 £3.05
43	MO112728449/0 Available to backorder	Screw	£1.33 £1.11

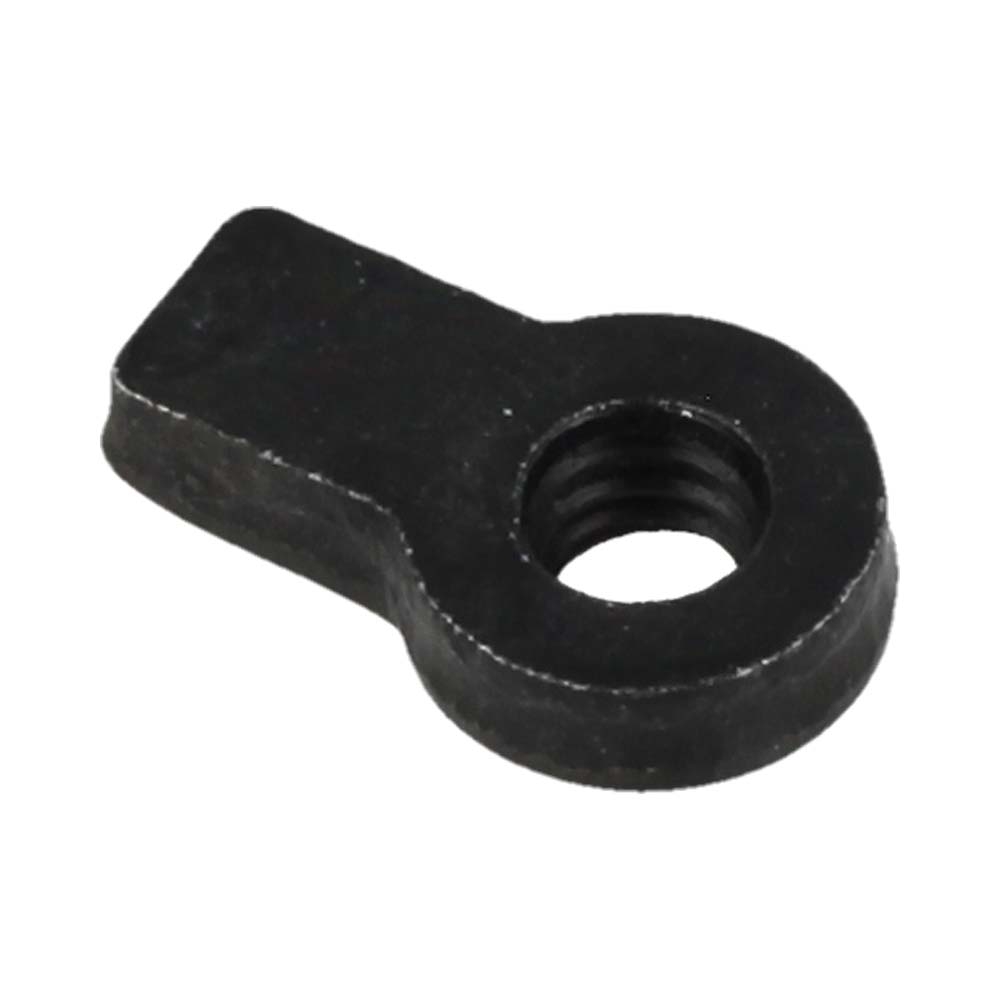

44	MO118804161/0 Available to backorder	Tension Screw	£1.70 £1.42
47	MO112608500/0 Available to backorder	Circlip	£1.70 £1.42
49	MO112727793/0 Available to backorder	Screw	£1.55 £1.29
50	MO123878021/0 Available to backorder	Screw	£1.33 £1.11
55	MO118810696/0 Available to backorder	Side Cover Assy. Grey	£7.31 £6.09
58	MO118805009/0 Available to backorder	Connector	£17.04 £14.20
59	MO118804150/0 Available to backorder	Position Circle	£17.04 £14.20
60	MO118803437/0 Available to backorder	Locking Cap [Grey]	£5.76 £4.80
