MLM 534 TR-H - 2010-2013 - 290532034/KRO - Stiga Rotary Mower Handle Upper Part Diagram

Name: MLM 534 TR-H - 2010-2013 - 290532034/KRO - Stiga Rotary Mower Handle Upper Part Diagram
SKU: mlm_534_tr_h_290532034_kro_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Part No. mlm_534_tr_h_290532034_kro_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MLM 534 TR-H - 2010-2013 - 290532034/KRO - Stiga Rotary Mower Handle Upper Part Diagram

Description

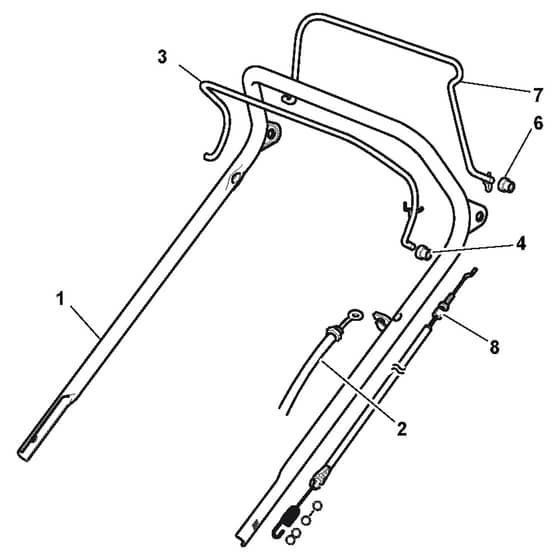

Stiga MLM 534 TR-H Parts Diagram

Product Name - MLM 534 TR-H

Model Year - 2010-2013

Model Type - ML 534 TR

Art.N - 290532034/KRO

Engine Model -

	Part No.	Details
2	MO181000640/0 Available to backorder	Cable. Thread Engine Brake HON Engine	£14.22 £11.85
2	MO181000641/0 Available to backorder	Cable. Thread Engine Brake HON Engine	£14.80 £12.33
3	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.93 £12.44
4	MO122041966/0 In stock	Bushing	£1.55 £1.29
6	MO322041965/1 Available to backorder	Bushing From 01-9-2004	£1.63 £1.36
7	MO181003288/1 Available to backorder	Driving Lever	£11.60 £9.67
8	MO381000668/1 In stock	Cable Rear Drive (General Transmission) From 01-9-2003	£20.96 £17.47
8	MO181000645/0 In stock	Cable Rear Drive (Bi. Ci. Di.) To 31-8-2003	£29.52 £24.60
8	MO381000672/0 In stock	Cable Rear Drive (Bi. Ci. Di.) From 01-9-2003	£19.57 £16.31
8	MO381001143/0 In stock	Clutch Drive Cable	£30.98 £25.82
