MLF 53 TRHGR - 2009 - 291537038/MFR - Mountfield Rotary Mower Transmission Diagram

Description

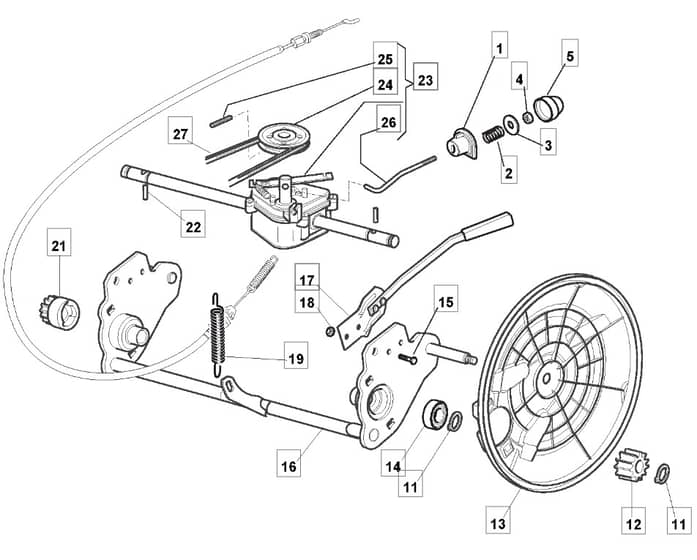

Mountfield MLF 53 TRHGR Parts Diagram

Product Name - MLF 53 TRHGR

Model Year - 2009

Model Type - CAL 534 W TR

Art.N - 291537038/MFR

	Part No.	Details
1	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
2	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
3	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
4	MO112154510/0 In stock	Nut	£1.55 £1.29
5	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
11	MO112608600/0 In stock	Seeger	£1.55 £1.29
12	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
13	MO322600160/0 Available to backorder	Protection. Wheel	£5.22 £4.35
14	MO119216035/0 In stock	Bearing	£3.52 £2.93
15	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
16	MO381002853/2 Available to backorder	Rear Wheel Axle	£85.87 £71.56
17	MO381003326/1 Available to backorder	Lever	£33.79 £28.16
18	MO112154330/0 In stock	Nut	£1.55 £1.29
19	MO122450460/0 Available to backorder	Spring	£4.64 £3.87
21	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
22	MO122753000/0 In stock	Pin	£1.55 £1.29
23	MO181003081/1 Available to backorder	Gear Box Bi.Ci.Di (Bi. Ci. Di.) To 31-8-2010	£145.04 £120.87
23	MO181003092/0 In stock	Gear Box (General Transmission) From 01-9-2010	£63.96 £53.30
23	MO181003076/1 Available to backorder	G.T. Gear Box (General Transmission) To 31-8-2008	£121.07 £100.89
24	MO122601909/0 In stock	Pulley	£5.65 £4.71
25	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
26	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.64 £3.87
27	MO135063902/1 In stock	Trapezoidal Belt Use 135063902.1	£8.53 £7.11
