MHT 2322 - 2021-2022 - 252421003/M21 - Mountfield Hedge Trimmer Engine Diagram

Name: MHT 2322 - 2021-2022 - 252421003/M21 - Mountfield Hedge Trimmer Engine Diagram
SKU: mht_2322_252421003_m21_engine-group
Price: 0.89 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MHT 2322 - 2021-2022 - 252421003/M21 - Mountfield Hedge Trimmer Engine Diagram

Description

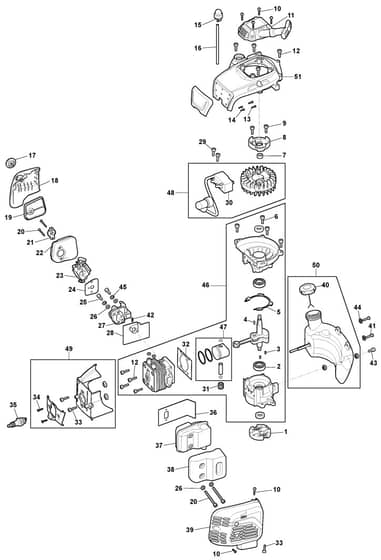

Mountfield MHT 2322 Parts Diagram

Model Year - 2021-2022

Model Type - H 555

Art.N - 252421003/M21

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118805485/0 Available to backorder	Clutch Assy	£11.12 £9.27
2	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
3	MO123665004/0 Available to backorder	Needle	£1.33 £1.11
4	MO118804601/0 Available to backorder	Woodruff Key	£1.40 £1.17
5	MO118805486/0 Available to backorder	Crankcase Gasket	£1.55 £1.29
6	MO2135050 Available to backorder	Screw	£1.33 £1.11
7	MO112293202/0 Available to backorder	Nut	£1.97 £1.64
8	MO118805487/0 Available to backorder	Starter Drive Plate	£4.50 £3.75
9	MO112735662/1 In stock	Screw	£2.40 £2.00
10	MO112727356/0 Available to backorder	Screw	£1.87 £1.56
11	MO118805524/0 In stock	Starter Assy	£14.00 £11.67
14	MO112728449/0 Available to backorder	Screw	£1.33 £1.11
15	MO118805489/0 Available to backorder	Primer Bulb	£3.79 £3.16
16	MO118805490/0 Available to backorder	Fuel Pipe	£1.33 £1.11
17	MO118805491/0 Available to backorder	Knob	£2.53 £2.11

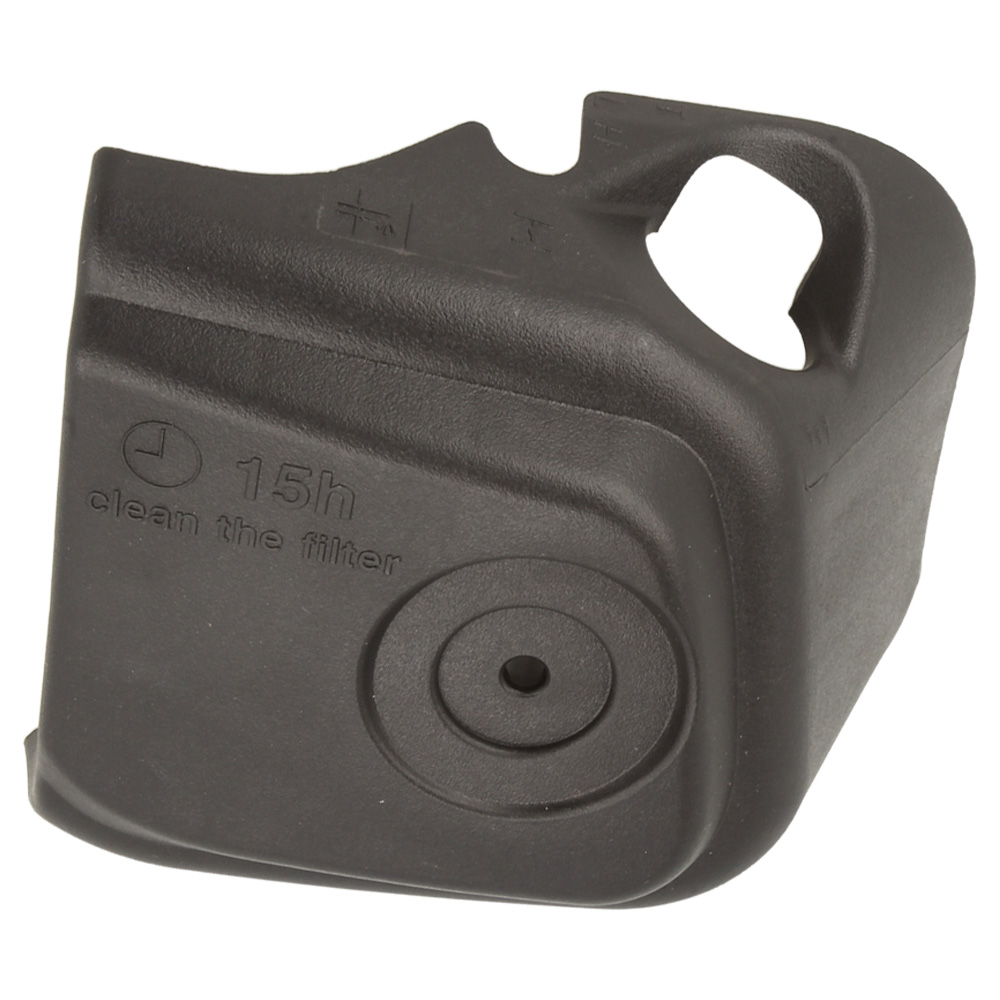

18	MO118805492/0 Available to backorder	Air Filter Cover	£8.74 £7.28
19	MO118805493/0 Available to backorder	Air Filter	£3.79 £3.16
20	MO2135200 Available to backorder	Screw	£1.38 £1.15
21	MO118805494/0 Available to backorder	Air Filter Support	£2.95 £2.46
22	MO118805495/0 Available to backorder	Air Filter Inside Cover	£7.46 £6.22
23	MO118805496/0 Available to backorder	Carburetor	£43.64 £36.37
24	MO118805497/0 Available to backorder	Carburetor Gasket	£1.40 £1.17
25	MO2132550 Available to backorder	Screw	£1.40 £1.17
26	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
27	MO118805498/0 Available to backorder	Carburettor Manifold	£5.92 £4.93
28	MO118805499/0 Available to backorder	Heat Insulated Pad	£5.35 £4.46
29	MO112735645/0 Available to backorder	Screw	£1.82 £1.52
30	MO118805500/0 Available to backorder	Ignition Coil	£45.79 £38.16
31	MO118803164/0 Available to backorder	Needle Bearing	£3.24 £2.70
32	MO118803165/0 Available to backorder	Cylinder Gasket	£1.55 £1.29
33	MO9943-0516-16 In stock	Screw	£1.22 £1.02
34	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
35	2688 In stock	Spark Plug	Was £1.44 £1.20 Special Price £1.07 £0.89
36	MO118805501/0 Available to backorder	Muffler Gasket	£3.24 £2.70
37	MO118805502/0 Available to backorder	Muffler	£32.38 £26.98
38	MO118805503/0 Available to backorder	Muffler Protection	£3.52 £2.93
39	MO118805504/0 Available to backorder	Muffler Cover	£6.47 £5.39
40	MO118805142/0 In stock	Fuel Tank Cap Assy	£4.50 £3.75
41	MO112728450/0 In stock	Screw	£1.55 £1.29
42	MO118805550/0 Available to backorder	Adjustment Nut	£2.68 £2.23
43	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
44	MO9699-0087-02 In stock	Washer	£2.12 £1.77
45	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
46	MO118805536/0 Available to backorder	Engine Short Block	£134.42 £112.02
47	MO118805537/0 Available to backorder	Piston Kit	£15.56 £12.97
48	MO118805538/0 Available to backorder	Electroni Coil & Flywheel Assy	£52.52 £43.77
49	MO118805543/0 Available to backorder	Air Guide Kit	£11.40 £9.50
50	MO118805547/2 Available to backorder	Fuel Tank Assy	£32.52 £27.10
51	MO118805728/0 Available to backorder	Engine Cover	£20.15 £16.79
