MHT 20 Li Kit - 2021-2022 - 271302103/M21 - Mountfield Hedge Trimmer Main Assy Diagram

Name: MHT 20 Li Kit - 2021-2022 - 271302103/M21 - Mountfield Hedge Trimmer Main Assy Diagram
SKU: mht_20_li_kit_271302103_m21_main_assy-group
Price: 1.11 GBP
Availability: InStock

Part No. mht_20_li_kit_271302103_m21_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MHT 20 Li Kit - 2021-2022 - 271302103/M21 - Mountfield Hedge Trimmer Main Assy Diagram

Description

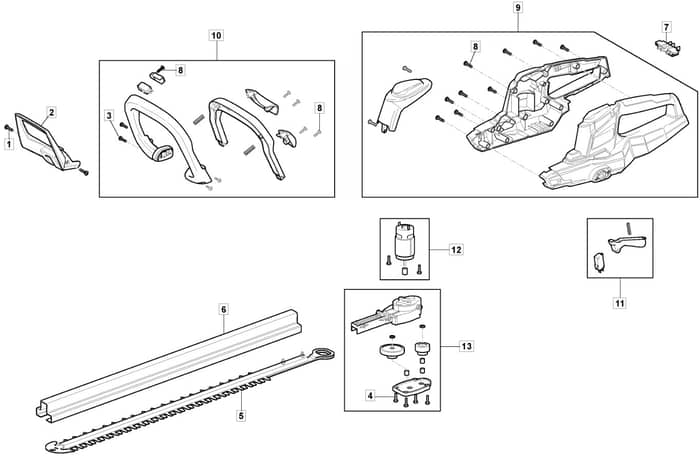

Mountfield MHT 20 Li Kit Parts Diagram

Model Year - 2021-2022

Model Type - HT 20 Li A

Art.N - 271302103/M21

	Part No.	Details
1	MO2123060 Available to backorder	Screw	£1.33 £1.11
2	MO118811118/0 Available to backorder	Guard	£3.79 £3.16
4	MO112727356/0 Available to backorder	Screw	£1.87 £1.56
5	MO118811082/0 Available to backorder	Blade Assy	£51.17 £42.64
6	MO118811083/0 Available to backorder	Blade Cover	£5.76 £4.80
7	MO118811081/0 Available to backorder	Battery Connector	£5.76 £4.80
8	MO123878123/0 Available to backorder	Screw	£1.70 £1.42
9	MO118811119/0 Available to backorder	Housing Kit	£24.22 £20.18
10	MO118811120/0 Available to backorder	Front Handle Kit	£19.98 £16.65
11	MO118811121/0 Available to backorder	Levers Kit	£10.98 £9.15
12	MO118811115/0 Available to backorder	Electric Motor Kit	£24.37 £20.31
13	MO118811116/0 Available to backorder	Gears Kit	£21.47 £17.89
