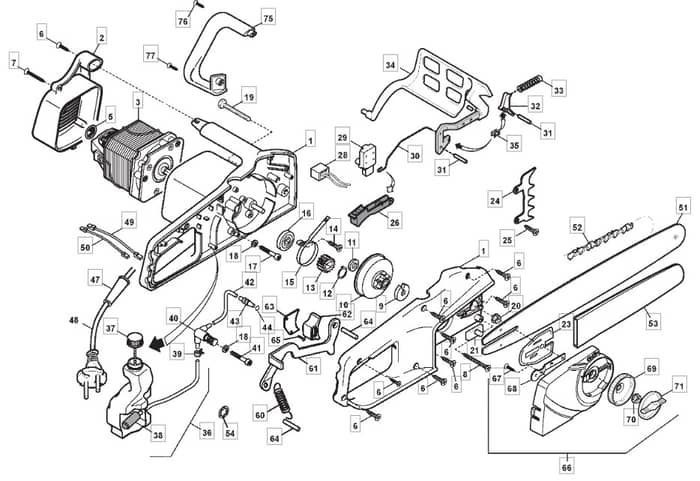

Mountfield ME 2016 Q Parts Diagram

Model Year - 2008

Model Type - Energy E 1.8

Art.N - 293016113/MO8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO383300012/0 Available to backorder	Handle Assy. Red	£50.93 £42.44
3	MO8251900 Available to backorder	Electric Motor	£121.07 £100.89
9	MO3614300 Available to backorder	Side Plate	£5.82 £4.85
10	MO8562940 Available to backorder	Gear Assy	£25.40 £21.17
12	MO3353020 Available to backorder	Seeger Ring	£1.40 £1.17
13	MO3660580 Available to backorder	Pinion	£4.57 £3.81
15	MO3614690 Available to backorder	Brake Band	£10.98 £9.15
17	MO2135040 Available to backorder	Screw	£1.38 £1.15
18	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
20	MO2670120 Available to backorder	Nut	£1.40 £1.17
21	MO323796003/0 Available to backorder	Chain Tightener Block	£3.94 £3.28
25	MO2123100 Available to backorder	Screw	£1.28 £1.07
26	MO3L3743497/1 Available to backorder	Switch Lever	£3.79 £3.16
29	MO3211200 Available to backorder	Switch	£8.02 £6.68
30	MO123835000/0 Available to backorder	Switch Rod	£5.06 £4.22
33	MO3653720 Available to backorder	Brake Spring	£3.38 £2.82
34	MO8563510 Available to backorder	Handguard Assy With Lever	£22.93 £19.11
35	MO4252020 Available to backorder	Chain Brake Link Assy	£5.20 £4.33
37	MO4252010 Available to backorder	Tank Cap	£3.52 £2.93
38	MO8642570 Available to backorder	Filter Intank Assy With Pipe	£9.01 £7.51
39	MO3320170 Available to backorder	Hose Clamp	£1.33 £1.11
40	MO8750100 Available to backorder	Oil Pump Assy	£26.74 £22.28
41	MO2123030 Available to backorder	Screw	£1.33 £1.11
42	MO3786010 Available to backorder	Oil Tube	£3.67 £3.06
51	MO1421602-01A Available to backorder	Guide Bar 16Inch	£41.80 £34.83
52	5046 In stock	Chain 16Inch	£10.36 £8.63
53	MO4181307 Available to backorder	Chain Cover 16Inch	£6.05 £5.04
54	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
65	MO2123090 Available to backorder	Screw	£1.69 £1.41
66	MO383109502/0 Available to backorder	Bar Holder Assy	£5.21 £4.34
67	MO2123060 Available to backorder	Screw	£1.33 £1.11
69	MO323250000/0 Available to backorder	Ring Nut	£3.52 £2.93
70	MO2670270 Available to backorder	Nut	£2.81 £2.34
71	MO323593501/0 Available to backorder	Knob	£5.76 £4.80
