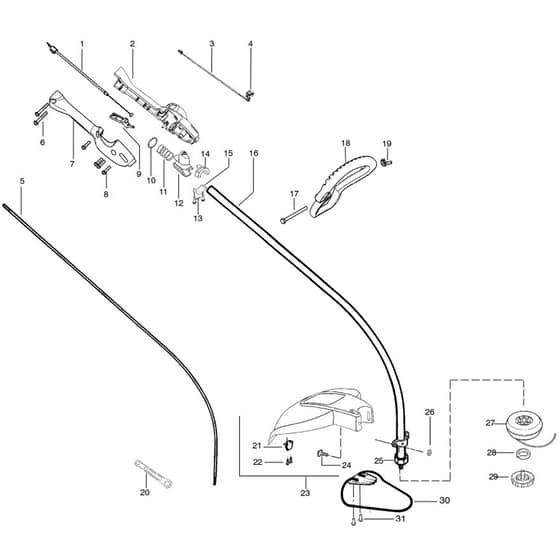

McCulloch Twist-n-Edge - 2008-03 - Shaft & Handle (2) Parts Diagram

Name: McCulloch Twist-n-Edge - 2008-03 - Shaft & Handle (2) Parts Diagram
SKU: twist_n_edge_2008_03_shaft_handle_2_-group
Price: 1.37 GBP
Availability: InStock

Part No. twist_n_edge_2008_03_shaft_handle_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch Twist-n-Edge - 2008-03 - Shaft & Handle (2) Parts Diagram

Description

McCulloch Twist-n-Edge - 2008-03 - Shaft & Handle (2) Parts Diagram

	Part No.	Details
3	HV545 05 88-01 Available to backorder	Assy Switch Wire	£27.91 £23.26
4	HV530 06 95-72 Available to backorder	Switch	£16.31 £13.59
6	HV530 01 64-06 Available to backorder	Screw	£2.30 £1.92
13	HV530 01 63-86 Available to backorder	Screw	£1.84 £1.53
19	HV530 09 13-73 Available to backorder	Wing Nut	£3.73 £3.11
20	HV530 05 64-01 Available to backorder	Wrench	£1.87 £1.56
21	HV530 05 22-86 Available to backorder	Blade	£5.76 £4.80
22	HV530 01 58-14 Available to backorder	Screw	£1.78 £1.48
24	HV530 01 58-20 Available to backorder	Screw	£3.59 £2.99
26	HV530 01 51-97 Available to backorder	Nut	£2.00 £1.67
27	HV530 09 59-35 Available to backorder	Assy.Wound Hub	£14.99 £12.49
28	HV530 40 39-49 Available to backorder	Guide	£7.06 £5.88
29	HV530 05 42-23 Available to backorder	Cap Assy	£10.90 £9.08
31	HV530 01 61-79 Available to backorder	Screw	£1.64 £1.37
