McCulloch Twist-n-Edge - 2008-03 - Engine (1) Parts Diagram

Name: McCulloch Twist-n-Edge - 2008-03 - Engine (1) Parts Diagram
SKU: twist_n_edge_2008_03_engine_1_-group
Price: 1.53 GBP
Availability: InStock

Part No. twist_n_edge_2008_03_engine_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch Twist-n-Edge - 2008-03 - Engine (1) Parts Diagram

Description

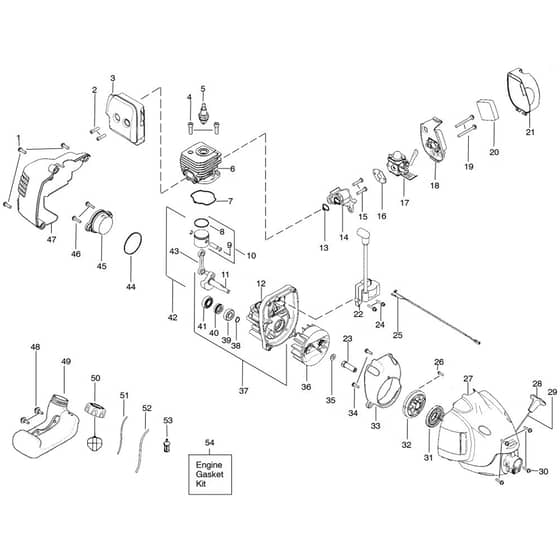

McCulloch Twist-n-Edge - 2008-03 - Engine (1) Parts Diagram

	Part No.	Details
1	HV530 01 58-80 Available to backorder	Screw	£2.05 £1.71
2	HV530 05 89-82 Available to backorder	Bolt	£2.56 £2.13
3	HV530 05 98-25 Available to backorder	Assembly	£62.76 £52.30
4	HV530 01 59-53 Available to backorder	Screw	£2.56 £2.13
5	9411 In stock	Spark Plug	£3.24 £2.70
6	HV530 01 25-41 Available to backorder	Cylinder	£52.56 £43.80
8	HV545 15 40-01 Available to backorder	Piston Ring	£7.12 £5.93
9	HV530 01 51-62 Available to backorder	Circlip	£2.30 £1.92
10	HV530 07 18-33 Available to backorder	Kit	£30.43 £25.36
12	HV530 01 25-82 Available to backorder	Crankcase	£64.08 £53.40
13	HV530 07 17-50 Available to backorder	Gasket Kit	£21.78 £18.15
14	HV530 05 75-47 Available to backorder	Adapter	£15.38 £12.82
17	HV530 07 18-22 Available to backorder	Carburettor	£61.32 £51.10
19	HV530 01 64-29 Available to backorder	Screw	£3.07 £2.56
20	HV530 03 65-75 Available to backorder	Air Filter	£7.92 £6.60
21	HV530 05 75-69 Available to backorder	Cover	£23.95 £19.96
22	HV501 09 28-01 Available to backorder	Ignition Module	£41.74 £34.78
23	HV530 02 79-53 Available to backorder	Coupling	£14.93 £12.44
25	HV545 05 48-01 Available to backorder	Wire Assy	£26.59 £22.16
30	HV530 01 63-86 Available to backorder	Screw	£1.84 £1.53
31	HV545 00 80-11 Available to backorder	Return Spring	£18.82 £15.68
32	HV545 08 18-52 Available to backorder	Kit	£20.11 £16.76
33	HV530 05 75-48 Available to backorder	Baffle	£7.79 £6.49
36	HV545 22 17-01 Available to backorder	Flywheel	£61.44 £51.20
40	HV530 01 92-64 Available to backorder	Seal	£6.12 £5.10
41	HV530 03 21-25 Available to backorder	Bearing	£11.16 £9.30
43	HV530 04 98-17 Available to backorder	Connecting Rod	£22.69 £18.91
45	HV530 05 79-54 Available to backorder	Plug	£6.36 £5.30
48	HV530 01 64-45 Available to backorder	Screw Fuel Tank Retainer	£2.66 £2.22
49	HV545 10 37-02 Available to backorder	Fuel Tank Assy	£46.80 £39.00
50	HV578 93 16-04 Available to backorder	Assy Fuel Cap W/Retainer	£18.26 £15.22
51	HV530 06 92-47 In stock	Hose	£9.36 £7.80
52	HV530 06 92-16 In stock	Fuel Hose	£11.23 £9.36
53	HV530 09 56-46 In stock	Filter	£7.01 £5.84
